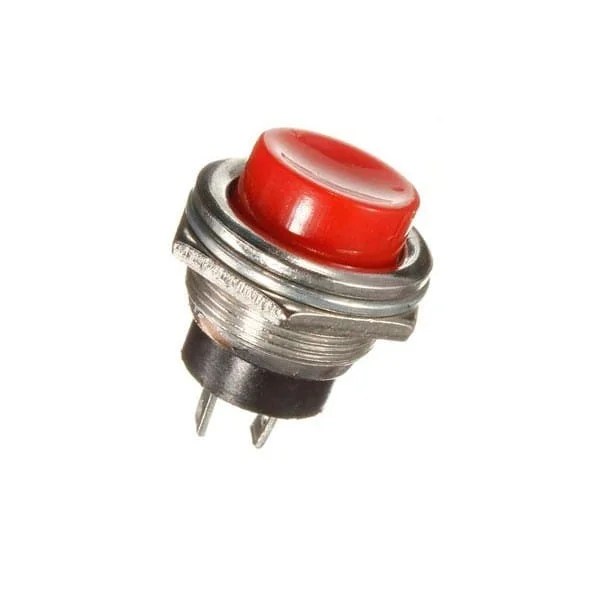

Panel Mount Momentary Push Button Switch

Panel Mount Momentary Push Button Switch

The Panel Mount Momentary Push Button Switch is a compact, reliable, and easy-to-install switch designed for temporary ON/OFF or signal control applications. It activates only while being pressed and returns to its default position when released, making it perfect for use in reset circuits, doorbells, test jigs, control panels, and automation systems.

This momentary push button switch is built with durable plastic or metal housing, ensuring long mechanical life and consistent performance. It can be easily mounted on control panels, instrument housings, or DIY enclosures with a standard threaded bushing and securing nut.
Its tactile feedback ensures a positive and responsive feel, suitable for both industrial and hobbyist applications.

Click here to view the related products

Features

• Momentary action: returns to OFF position after release.
• Panel mount design for secure and easy installation.
• Durable construction with metal or reinforced plastic body.
• Available in multiple colors (Red, Green, Black, etc.) for easy identification.
• Screw or solder terminals for versatile wiring options.
• Compact design fits standard control panel holes.
• High reliability with long mechanical life (typically 10⁵–10⁶ cycles).

Specifications :-

• Material: plastic and metal
• Operating Voltage: 125~250V
• Current Rating: 3A
• Contacts configuration: SPST
• Switch method: Pushbutton
• Mounting Type: Panel Mount
• Leads: Solder lugs
• Color: Red
• Dimensions: in mm
• Diameter: 15.5mm
• Height: 26mm
• Approx. Weight: 15gm

Applications

• Reset and start buttons on control panels
• DIY electronics projects and Arduino inputs
• Industrial automation and machine control systems
• Alarm systems, doorbells, and signal control
• Testing and instrumentation equipment
