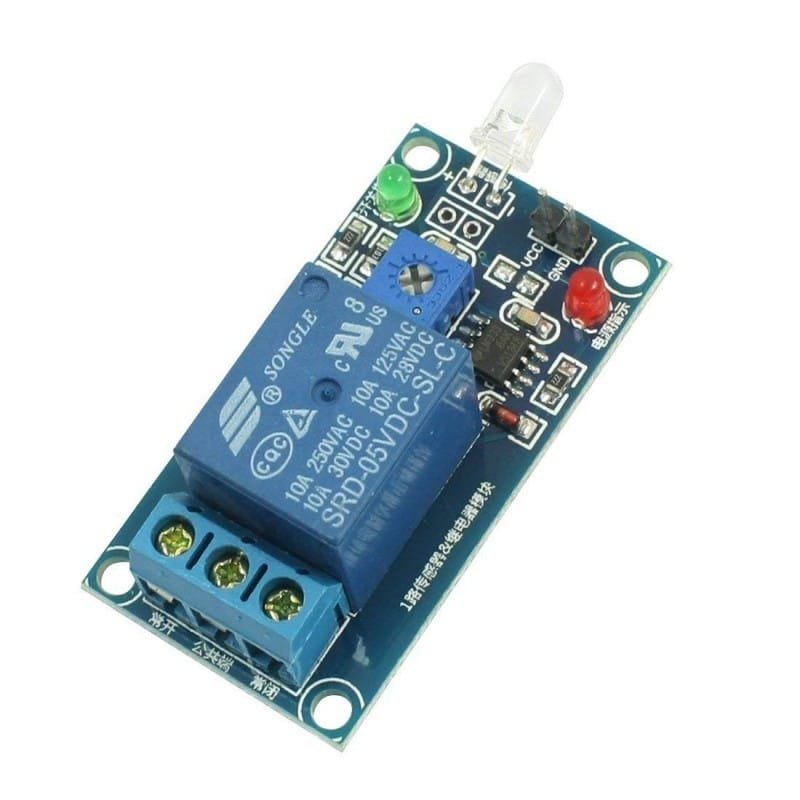

Photosensitive Diode Relay Module

275.00 + GST

Share with Friends

It is a Photosensitive Diode Relay Module. The light brightness detection, detection, through the potentiometer adjustable brightness detection valve, with relay, to do a variety of brightness detection switch, can control all kinds of lights, night open automatically, and automatically extinguished daytime car supplies control and automation equipment. Compared with the photosensitive resistance, the direction is relatively good, can sense the fixed direction of the light source, detection of the light front of the photodiode is in front of the light, it is difficult to detect the surrounding, often in the light-seeking function.

Specifications :-

Operating Voltage (VDC) 3.3 ~ 5
Trigger Current (mA) 20
Trigger Voltage (VDC) 5
Switching Voltage (VAC) 250@10A
Switching Voltage (VDC) 30@10A
Operating Temperature (C) -40 to 80
Opt. Relative Humidity(RH) 20% 85%
Storage condition () 65 to 125
Length (mm) 50
Width (mm) 26
Height (mm) 17

* product image for illustration purposes only. actual product may vary.
