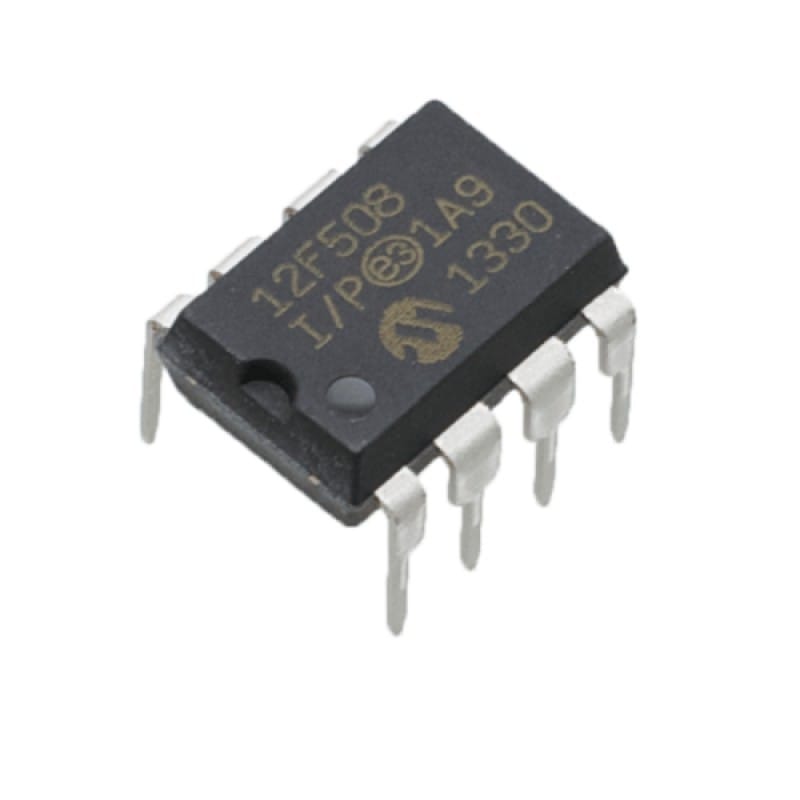

PIC12F508 Microcontroller Dip 8 Package

PIC12F508 Microcontroller Dip 8 Package

The PIC12F508 is an 8-bit Flash microcontroller developed by Microchip Technology. It belongs to the PIC12F family, which is designed for low-pin-count, compact, and cost-effective embedded applications.

It uses Harvard architecture with a RISC instruction set, allowing most instructions to execute in a single instruction cycle. The PIC12F508 integrates Flash program memory, RAM, digital I/O, and timers, making it suitable for simple control, timing, and switching applications. The DIP-8 package makes it easy to use in through-hole PCB designs for prototyping and low-cost products.

Click here to view related products

Features

• 8-bit PIC CPU (RISC architecture)
• Operating voltage: 2.0 V – 5.5 V
• Maximum clock frequency: 20 MHz
• Program memory: 512 bytes Flash
• RAM: 25 bytes
• EEPROM: Not available
• I/O pins: 6 programmable digital I/O pins
• Timers:
• Timer0 (8-bit)
• Analog features: None (digital-only)
• PWM module: Not available
• Interrupt system
• Watchdog Timer (WDT)
• In-Circuit Serial Programming (ICSP)
• Low-power sleep mode
• Package type: DIP-8 (also available in SMD/SOIC)

Applications

• Simple embedded control systems
• LED and display control
• Timer and counter applications
• Low-cost consumer electronics
• Basic switching and automation tasks
• Battery-powered devices
• Educational and student projects
