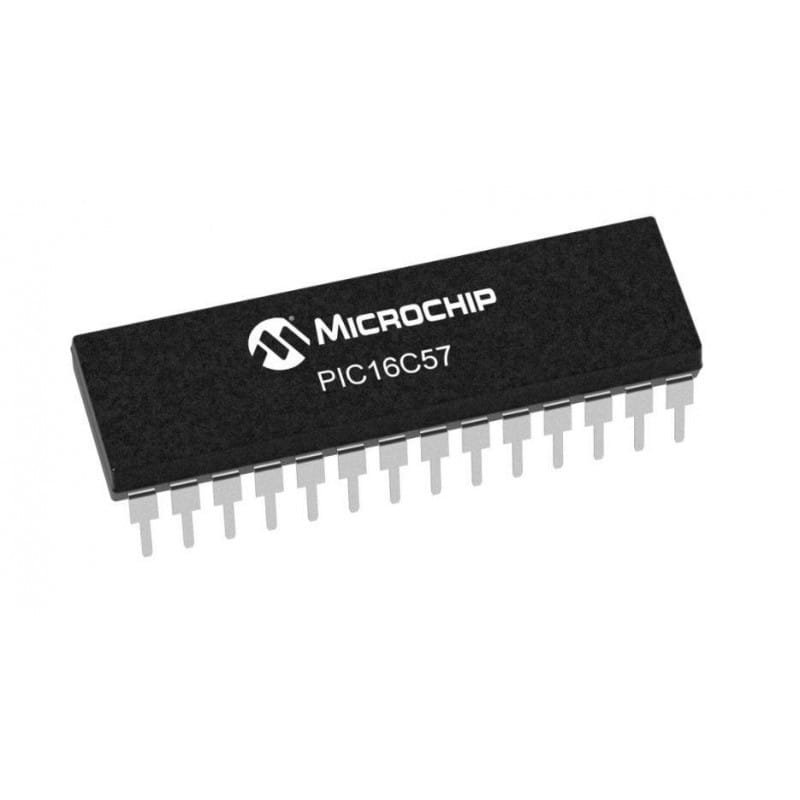

PIC16C57 Microcontroller

PIC16C57 Microcontroller

The PIC16C57 is an 8-bit microcontroller developed by Microchip Technology. It belongs to the PIC16C family, where the letter “C” indicates OTP (One-Time Programmable) or EPROM-based program memory, rather than Flash memory.

It is based on Harvard architecture and uses a RISC instruction set, allowing most instructions to execute in a single instruction cycle. The PIC16C57 is designed for very low-cost and simple embedded control applications.

Click here to view related products

Features

• 8-bit PIC CPU (RISC architecture)
• Operating voltage: 4.0 V – 5.5 V
• Maximum clock frequency: 20 MHz
• Program memory: 2 KB OTP/EPROM
• RAM: 72 bytes
• EEPROM: 0 bytes
• I/O pins: Up to 20 programmable digital I/O pins
• Timers:
• Timer0 (8-bit)
• Analog features:
• None (no ADC or comparators)
• Interrupt system: Basic interrupt support
• Watchdog Timer (WDT)
• Low-power Sleep mode
• Available packages: DIP and CERDIP

Applications

• Simple embedded control systems
• Industrial automation
• LED and relay control
• Timing and counting applications
• Consumer electronic devices
• Educational and training projects
