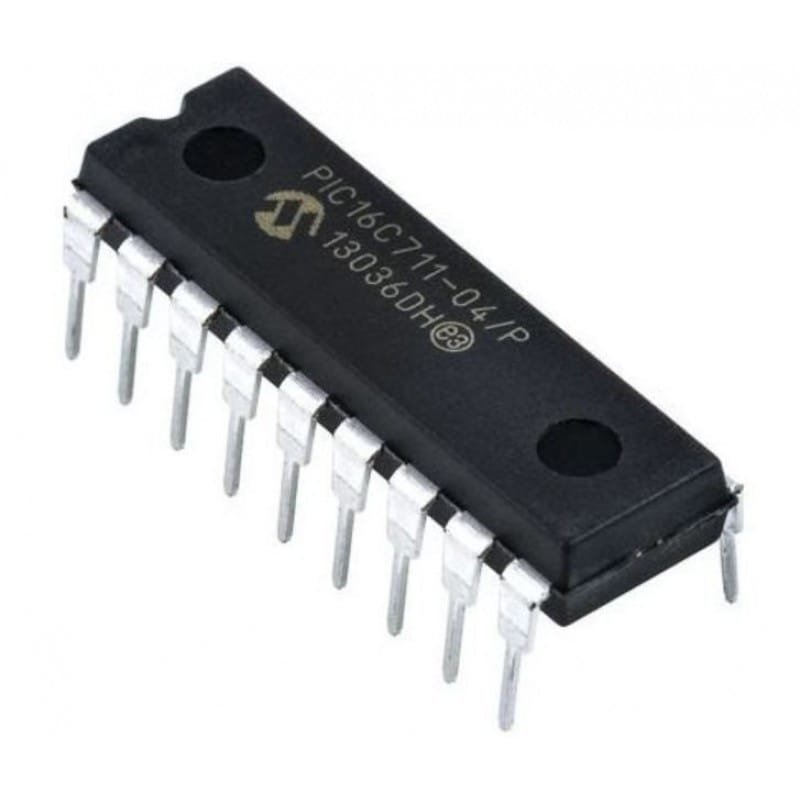

PIC16C711 Microcontroller

PIC16C711 Microcontroller

The PIC16C711 is an 8-bit microcontroller from Microchip Technology belonging to the PIC16C family. The letter “C” indicates that it uses OTP (One-Time Programmable) or EPROM program memory, unlike modern Flash-based PIC16F devices.

It is based on Harvard architecture and uses a RISC instruction set, enabling most instructions to execute in one instruction cycle. The PIC16C711 is designed for simple mixed-signal embedded applications, as it integrates an Analog-to-Digital Converter (ADC) along with digital I/O and timers.

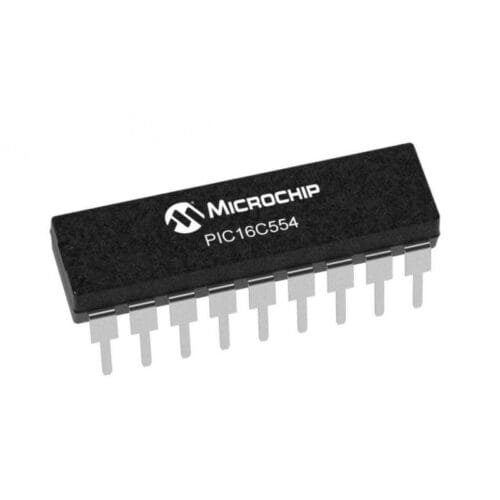

Click here to view related products

Features

• 8-bit PIC CPU (RISC architecture)
• Operating voltage: 4.0 V – 5.5 V
• Maximum clock frequency: 20 MHz
• Program memory: 1 KB OTP/EPROM
• RAM: 36 bytes
• EEPROM: 64 bytes
• I/O pins: Up to 13 digital I/O pins
• Timers:
• Timer0 (8-bit)
• Analog features:
• 4-channel, 8-bit Analog-to-Digital Converter (ADC)
• Interrupt system
• Watchdog Timer (WDT)
• Low-power Sleep mode
• Available packages: DIP and CERDIP

Applications

• Sensor-based control systems
• Simple data acquisition units
• Industrial and home automation
• Monitoring and measurement devices
• Consumer electronics
• Educational and training projects
