PIC16F74 Microcontroller

The PIC16F74 is a 28/40-Pin 8-Bit CMOS FLASH Microcontrollers.

The following are the features:-

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

• Capture, Compare, PWM (CCP) module

– Capture is 16-bit, max. resolution is 12.5 ns

– Compare is 16-bit, max. resolution is 200 ns

– PWM max. resolution is 10-bit

• 8-bit, 5-channel analog-to-digital converter

• Synchronous Serial Port (SSP) with SPI™ (Master/Slave) and I2C™ (Slave)

• Brown-out detection circuitry for Brown-out Reset (BOR)

specifications:-

Program Memory Type                                              Flash
Program Memory Size (KB)                                        7
CPU Speed (MIPS/DMIPS)                                          5
SRAM (B)                                                                   192
Temperature Range (°C)                                           -40 to 125
Operating Voltage Range (V)                                     2 to 5.5
Pin Count                                                                   40
Timers                                                                        2 x 8-bit, 1 x 16-bit
ADC Input                                                                  8 ch, 8-bit
Capture/Compare/PWM Peripherals                         2 Input Capture, 2 CCP
Digital Communication Peripherals                           1-UART, 1-SPI, 1-I2C1-SSP(SPI/I2C)

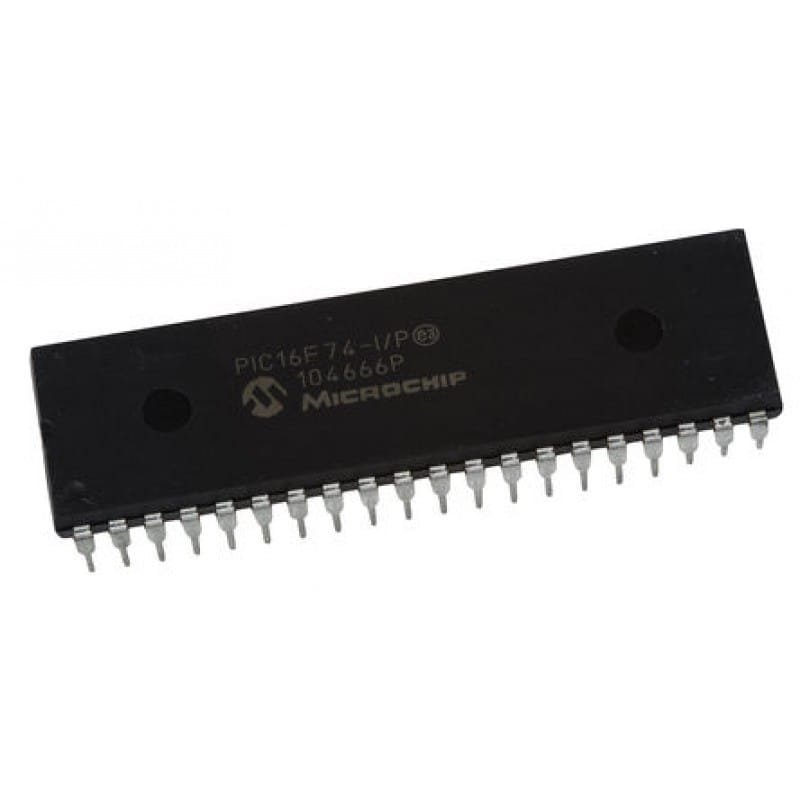

* product image for illustration purposes only. actual product may vary.
