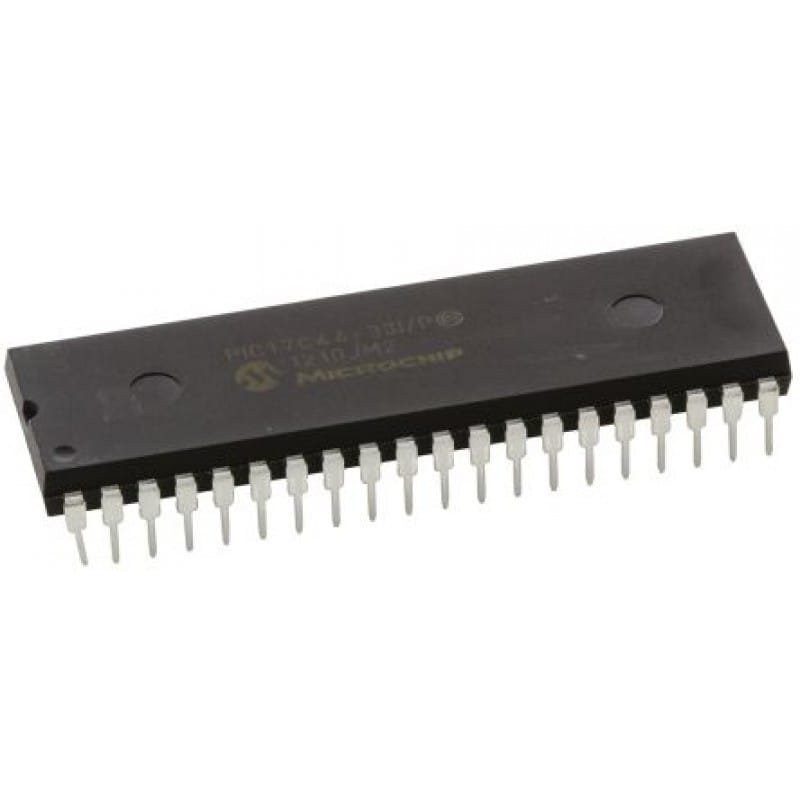

PIC17C44 Microcontroller

PIC17C44 Microcontroller

The PIC17C44 is an 8-bit high-performance microcontroller developed by Microchip Technology. It belongs to the PIC17 family, which was designed for very high-speed operation compared to earlier PIC devices.

The PIC17C44 uses Harvard architecture and a RISC instruction set, enabling fast instruction execution. Unlike modern PIC18 devices, it uses OTP (One-Time Programmable) EPROM program memory, meaning the program is written once and cannot be erased. It was mainly used in applications requiring high processing speed and deterministic real-time control.

Click here to view related products

Features

• 8-bit RISC CPU
• Harvard architecture
• Operating voltage: 4.5 V – 5.5 V
• Maximum clock frequency: Up to 33 MHz
• Program memory: 4 KB OTP EPROM
• Data RAM: 232 bytes
• I/O pins: Up to 33 programmable I/O pins
• Timers:
• Multiple 16-bit timers
• Interrupt system with vectored interrupts
• Hardware multiplier for fast arithmetic operations
• Parallel slave port (PSP) support
• Watchdog Timer (WDT)
• High instruction throughput (one instruction per cycle)

Applications

• High-speed embedded control systems
• Industrial automation equipment
• Motor control systems
• Communication and interface devices
• Data acquisition systems
• Real-time control applications
• Legacy embedded systems
