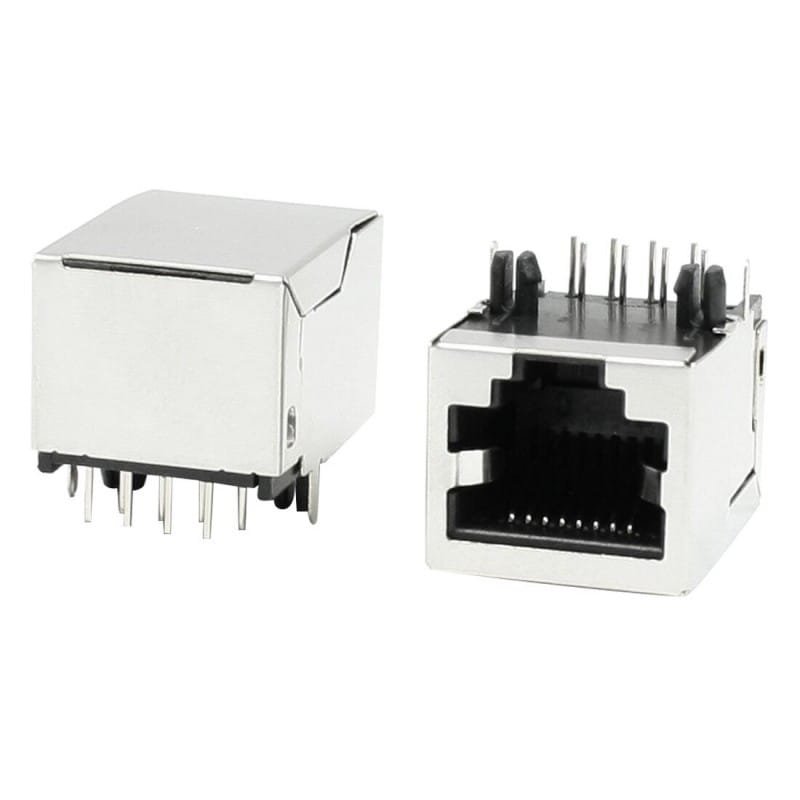

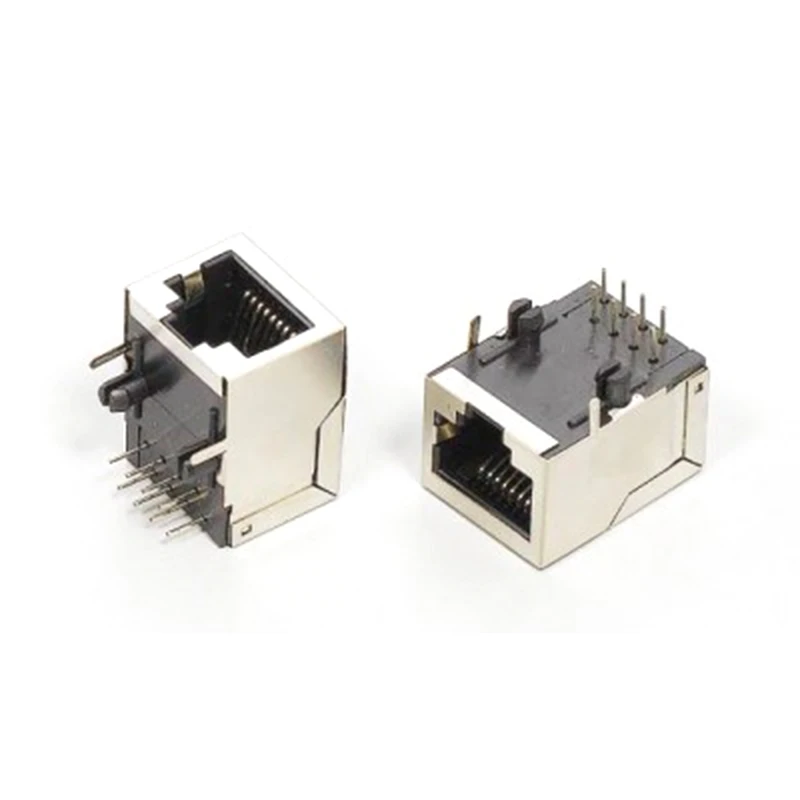

RJ45 8P 8C Female Plug PCB Mount

RJ45 8P 8C Female Plug PCB Mount

The RJ45 8P8C Female Plug PCB Mount Connector is a high-quality network interface jack designed for Ethernet and communication circuit integration directly onto a printed circuit board (PCB). It provides a secure, reliable connection for standard RJ45 male plugs used in LAN, router, and communication modules.

This connector features 8 positions and 8 contacts (8P8C) — the standard configuration for Ethernet networking — making it fully compatible with CAT5, CAT5e, and CAT6 cables. Designed for through-hole PCB mounting, it allows easy integration into custom electronic designs or network equipment.

Constructed from high-grade plastic housing and gold-plated contacts, it ensures excellent signal integrity, corrosion resistance, and long operational life. The connector is widely used in routers, switches, network interface cards, and IoT devices.

Click here to view the related products

Features

• Standard RJ45 8P8C configuration (8 positions, 8 contacts).
• Designed for PCB through-hole mounting.
• Gold-plated contacts for enhanced conductivity and durability.
• Supports Ethernet 10/100/1000 Mbps transmission speeds.
• Rugged plastic housing for secure mating and long service life.
• Compatible with CAT5/CAT5e/CAT6 network cables.
• Compact, board-friendly design for easy integration.

Specifications :-

Applications

• Ethernet ports in routers, modems, and switches.
• Network-enabled embedded systems and microcontroller boards.
• Industrial control equipment requiring LAN connectivity.
• DIY networking projects and IoT communication modules.
