RS-25-3.3 Mean Well SMPS 3.3V 6A 20W Metal Power Supply

RS-25-3.3 Mean Well SMPS 3.3V 6A 20W Metal Power Supply.

Specifications:-

• Output Voltage           3.3V
• Type                         Enclosed Type
• Approx. Wattage  20W
• Features                  Standard
• Series                  G3(Reliable)
• Mechanical Form  Enclosed
• Warranty                  3 Years Warranty
• IP Level                  Non-Waterproof
• Input Voltage          100-240V auto-select

Features:-

• No load power consumption <0.5W
• All using 105°C long life electrolytic capacitors
• Protections: Short circuit / Overload / Over voltage / Over Temp.
• Meet EMS EN50082-2/EN61000-6-2
• heavy industry level (35~150W)
• Withstand 300VAC surge input for 5 sec.
• High operating temperature up to 70°C
• Withstand 5G vibration test
• Miniature size, high power density
• High efficiency, long life and high reliability
• LED indicator for power on
• 100% full load burn-in test

rs-25-meanwell-datasheet

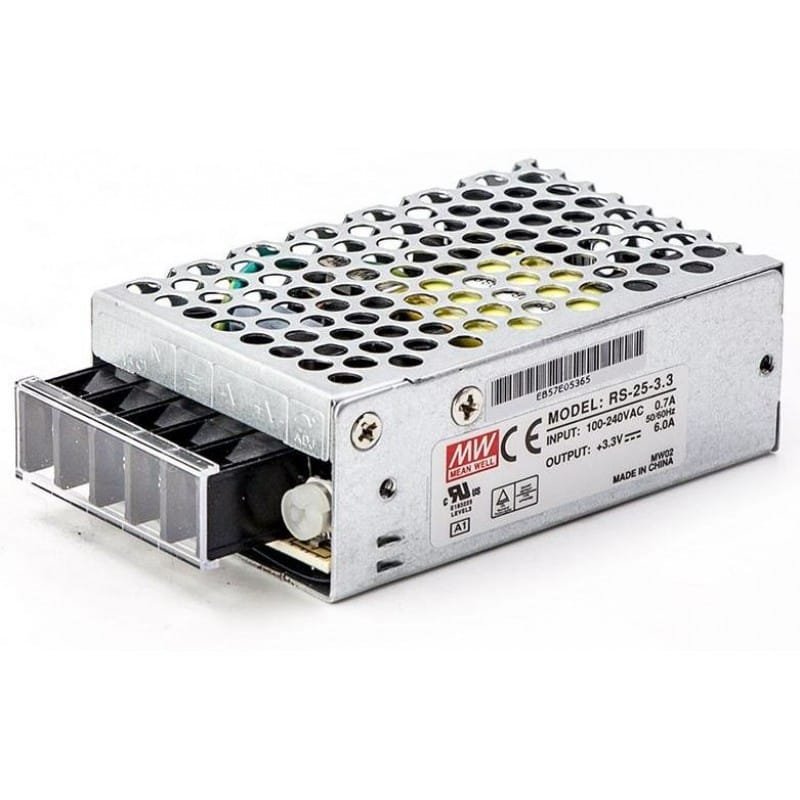

*product image for illustration purposes only. actual product may vary.
