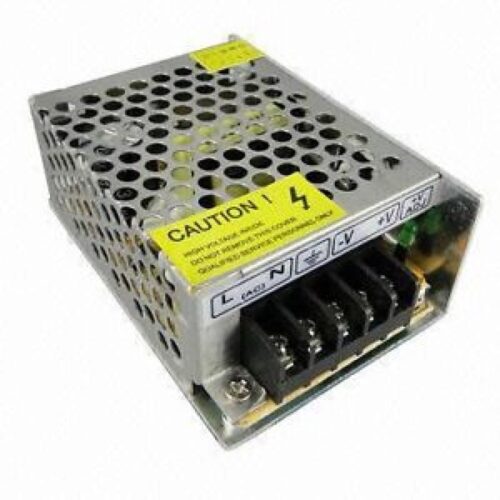

RT-50C Mean Well SMPS (5V 4A), (15V 1.5A) and (-15V 0.5A) 50W Triple Output Metal Power Supply

RT-50C Mean Well SMPS (5V 4A), (15V 1.5A) and (-15V 0.5A) 50W Triple Output Metal Power Supply.

Specifications:-

• Output Voltage-Channel 1         5 VDC
• Output Voltage-Channel 2         15 VDC
• Output Voltage-Channel 3         -15 VDC
• Output Current-Channel 1         4A
• Output Current-Channel 2         1.5A
• Output Current-Channel 3         0.5A
• Number of Outputs                   3 Output
• Output Power                           50 W
• Type                                        Enclosed Type Triple Output
• Features                                 Standard
• Series                                 RT (Reliable)
• Mechanical Form                 Enclosed
• Warranty                                 3 Years Warranty
• IP Level                                 Non-Waterproof
• Input Voltage                         88 VAC to 264 VAC, 125 VDC to 373 VDC

Features:-

• Universal AC input / Full range
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• LED indicator for power on
• 100% full load burn-in test
• All using 105°C long life electrolytic capacitors
• Withstand 300VAC surge input for 5 second
• High operating temperature up to 70°C
• Withstand 5G vibration test
• High efficiency, long life and high reliability
• 3 years warranty

RT-50 Meanwell Datasheet
