SLA4390 PNP and NPN Darlington H-bridge Transistor SIP-12 Package

SLA4390 PNP and NPN Darlington H-bridge Transistor SIP-12 Package

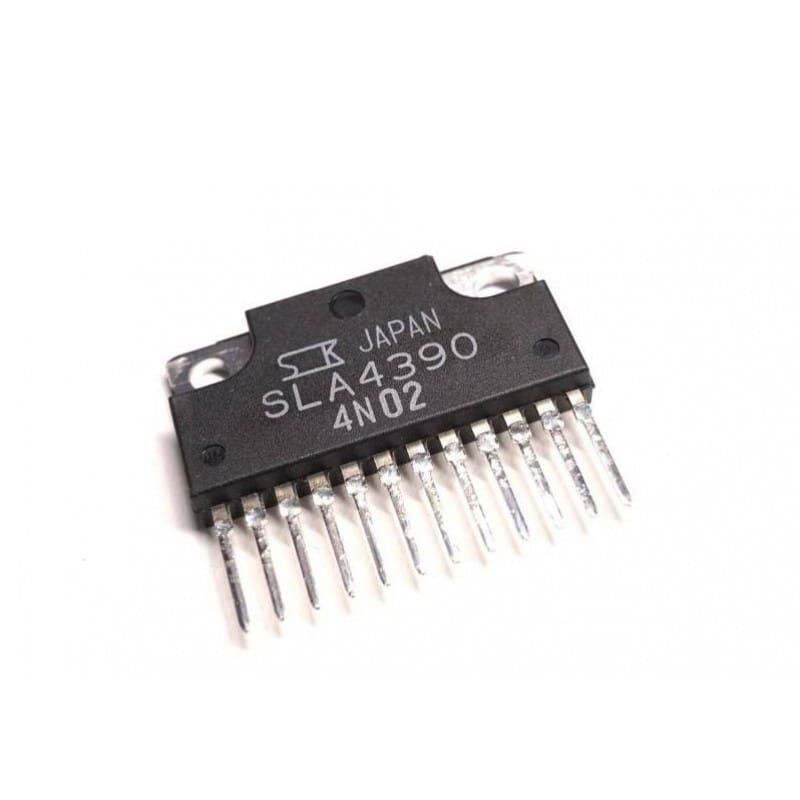

The SLA4390 is a high-current PNP and NPN Darlington H-Bridge transistor array designed for power switching and motor control applications. This SIP-12 package combines multiple Darlington pairs to provide high current gain, low saturation voltage, and efficient H-bridge configuration for driving DC motors, solenoids, and other inductive loads.

With integrated PNP and NPN transistors, the SLA4390 allows for compact H-bridge design, reducing component count and PCB space. It is optimized for high-current applications up to several amperes, making it suitable for industrial motor drivers, robotics, and automotive electronics.

Click here to view related products

Features:

• Transistor Type: PNP and NPN Darlington Transistor Array
• Package: SIP-12 (Single In-Line Package, 12 pins)
• High Current Handling: Suitable for medium-to-high current loads
• Low Saturation Voltage: Ensures efficient switching
• Integrated H-Bridge Configuration: Simplifies motor driver design
• High Current Gain: Provides strong output drive with minimal input current
• Thermally Stable: Reliable operation under load and temperature
• Compact Design: SIP-12 package reduces board space

Applications:

• DC Motor Drivers: Ideal for H-bridge motor control circuits
• Relay and Solenoid Drivers: Efficient switching of inductive loads
• Industrial Automation: Control of actuators and machinery
• Robotics: Motor and movement control in compact designs
• Automotive Electronics: Power switching and actuator control
• Educational & Hobby Projects: High-current motor and actuator experiments
• General High-Current Switching: Low-voltage, high-current applications
