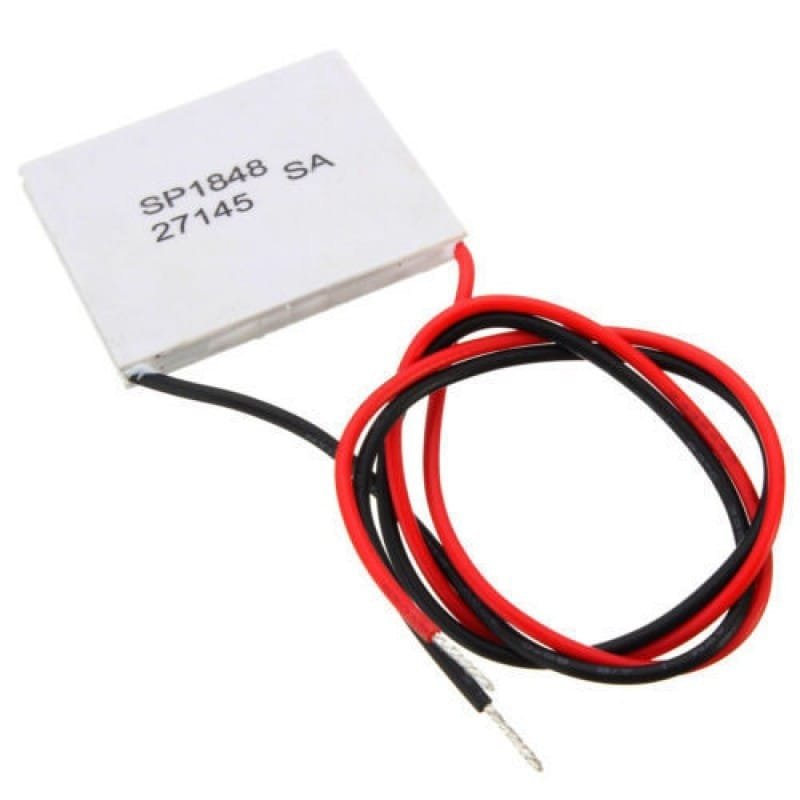

SP1848-27145 Thermoelectric Power Generator TEG 150°C Peltier Module

After applying the heat on one side and cold on other side the device will start generating the voltage which depends upon the value of applied heat. TheSP1848-27145 40x40mm Thermoelectric Power Generator TEG 150C Peltier Module will generate the moderate amount of voltage with mA of current.

A Thermoelectric Generator (TEG) module is a semiconductor-based electronic component that functions as a small generator.

Temperature (C) 20 40 60 80 100
Open circuit voltage (V) 0.97 1.8 2.4 3.6 4.8
Current (mA) 225 368 469 558 669

Operating Tips:-

1. Do not exceed the maximum operating temperature of the module.
2. Life expectancy: 200,000 hours.
3. Failure rate based on longtime testing: 0.2%.

Note:-

1. MODEL NUMBER SIDE IS EXPOSED TO HEAT-SINK or ICE AND OPPOSITE SIDE TO HEAT.
2. Place 2-3 drops of grease compound on both sides of TEG Module

Features :-

1. Small and lightweight, convenient for use.
2. Designed specifically for power generation.
3. Sealed for moisture protection and contain thermal elements formulated for optimum Seebeck power generation.
4. High-temperature 150C, with NM static protection.
5. Quality tested cooling cells.
6. Simple to install and operate.
7. with 5v Booster board you can charge the cell phone

specifications:-

Model                                        SP1848-27145
Open Circuit Voltage (V)              4.8
Operating Temperature (C)       0 to 150
Maximum Temperature(C)         150
Wire Length(mm)                       350
Length (mm)                               40
Width (mm)                                40
Height (mm)                              3.6
Weight(gm)                               30

* product image for illustration purposes only. actual product may vary.
