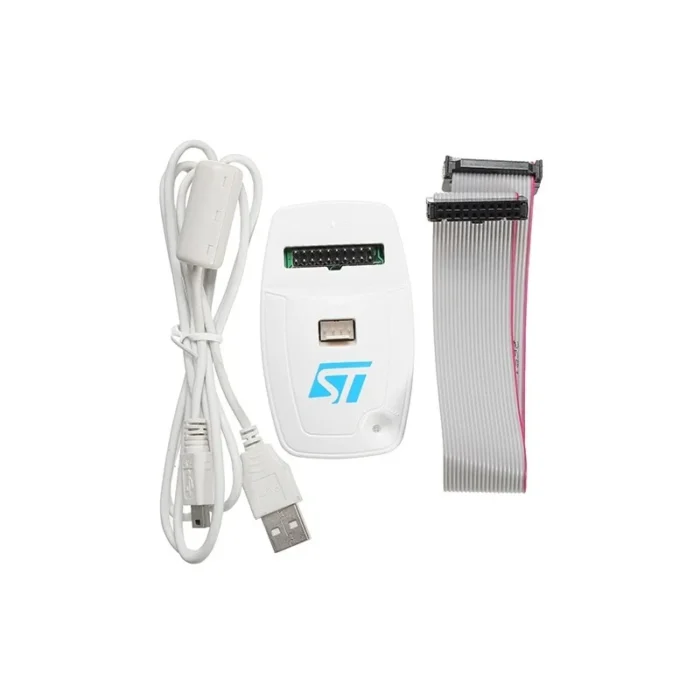

ST LINK V2 in-circuit Debugger / Programmer for STM8 and STM32

899.00 Excluding tax

Category: Tags: , ,
Spread the components

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

Much similar in architecture for debugging, the ST-LINK/V2 and the ST-LINK/V2-ISOL share the same features like digital isolation between the PC and the target application board this allows to withstands voltages of up to 1000 Vrms.

Specifically the debugger incorporates the use of USB full-speed interface to communicate with the ST Visual Develop (STVD)  or ST Visual Program (STVP) software for STM8 application, and use of the USB full-speed interface to communicate with Atollic®, IAR™, Keil®or TASKING integrated development environments for STM32 applications.

Specifications:-

  • Support STM32 SWD interface debugging
  • Support STM8 all series download
  • Support firmware auto upgrade
  • With cover case for protection, anti-dust and anti-short circuit
  • Small size: 50*28*14mm

SWIM Specifications :-

  • 1.65 V to 5.5 V application voltage supported on SWIM interface
  • SWIM low-speed and high-speed modes supported
  • SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
  • SWIM cable for connection to the application via an ERNI standard vertical connector (ref: 284697 or 214017) or horizontal connector (ref: 214012)
  • SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector

JTAG/serial wire debugging (SWD) Specifications :-

  • 1.65 V to 3.6 V application voltage supported on the JTAG/SWD interface and 5 V tolerant inputs
  • JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
  • JTAG supported
  • SWD and serial wire viewer (SWV) communication supported
  • Direct firmware update feature supported (DFU)
  • Status LED which blinks during communication with the PC
  • Operating temperature 0 to 50 °C
  • 1000 Vrms high isolation voltage (ST-LINK/V2-ISOL only)

ST V2 manual
