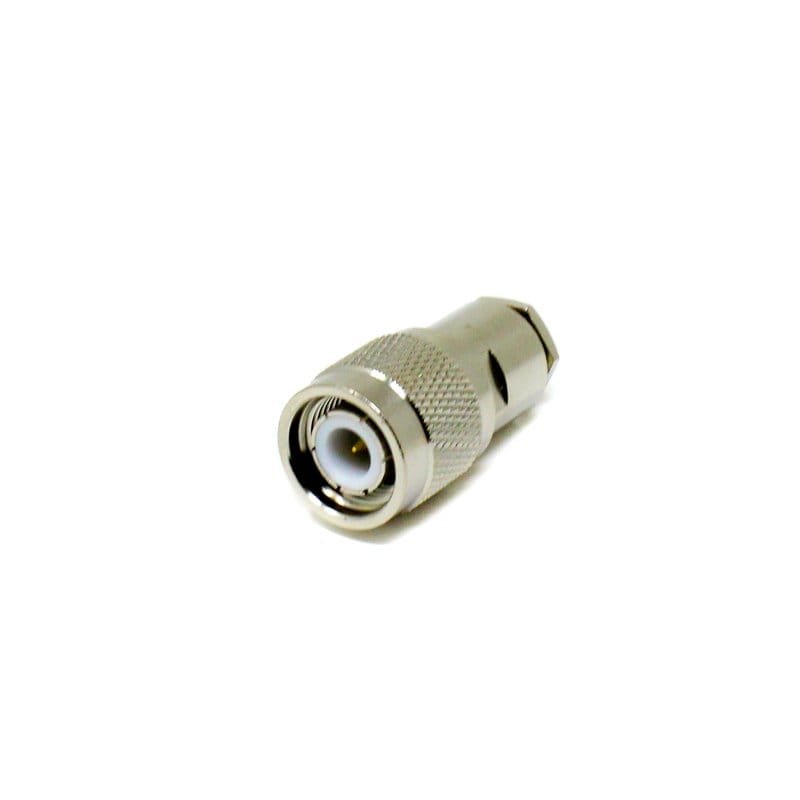

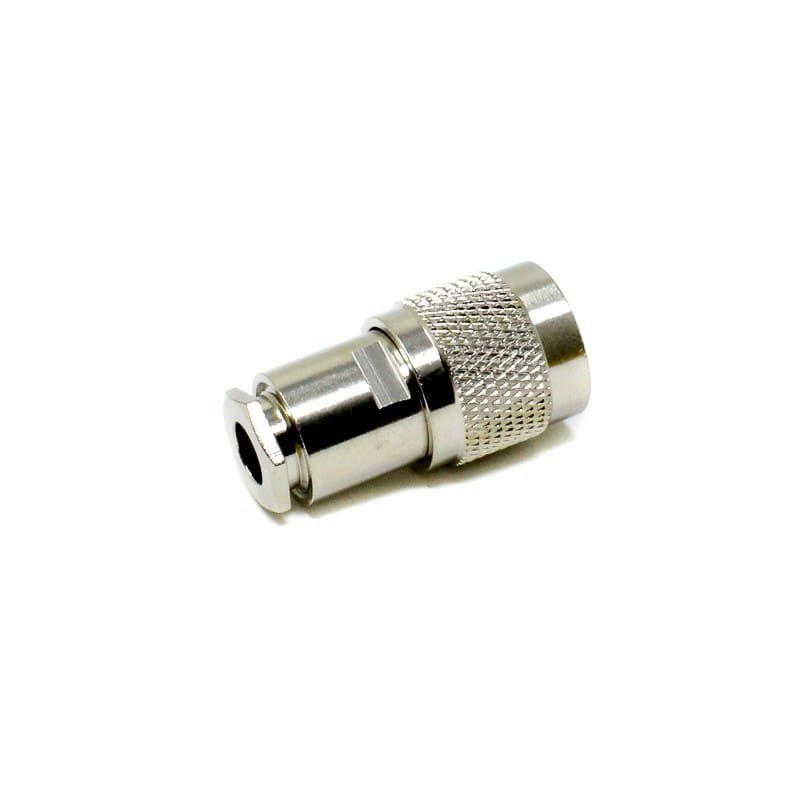

TNC Plug Straight Screw Terminal for Cable

98.00 Excluding tax

Spread the components

These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.

Main Application of TNC Connectors: Cellular Mobile Phones, Aviation Controls, Telemetry, Bluetooth and GPS, Wireless Base Station, Microwave Components, Radar, Networks, Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation.

Features:-

  • Plug,TNC,Male,Straight,RG58,Screw Terminal for Cable,50ohm,75ohm,Brass,Nickel;
  • Thread Version of BNC used in Vibration-Intense application with high durability;
  • Higher Performance than BNC with 0-11 GHz Microwave frequencies and 50-ohm impedance;
  • High Quality made according to MIL-C-39012 standard.

Electrical Characteristics

  • Impedance 50 ohm
  • Frequency Range: 0~11 GHz for 50 ohm
  • VSWR: Straight type 1.3max / R/A type 1.5max
  • Dielectric Withstanding Voltage: 1500 V rms
  • Working Voltage: 500 V rms
  • Center Contact Resistance 3.0m (Milliohms max.)
  • Outer Contact Resistance 2.0 m (Milliohms max.)
  • Insulation Resistance 5 10m (Milliohms min.)

Mechanical Characteristics

  • Coupling:7/16-28 thread
  • Contact Retention: 6 lbs min.
  • Mating Durability: 500 cycles

Environmental Characteristics

  • Environmental Characteristics: -65oC~+145oC
  • Coupling Nut Retention: 100 lbs. min.
  • Vibration: MIL-STD-202 Meth. 204
  • Corrosion Resistance: MIL-STD-202 Meth. 101

Specifications :-

Brand ElecBee
Orientation Straight
Gender Male
Mounting Type Cable
Termination Style Crimp Type
Mounting Feature None
Function Other
Polarity Standard
Body Material Zinc Alloy
Body Plating Nickel Plating
Impedance 50 ohms
Shield Termination Crimp

* product image for illustration purposes only. actual product may vary.
