TOP224YN Power Integrations Off Line Switcher IC

TOP224YN Power Integrations Off Line Switcher IC

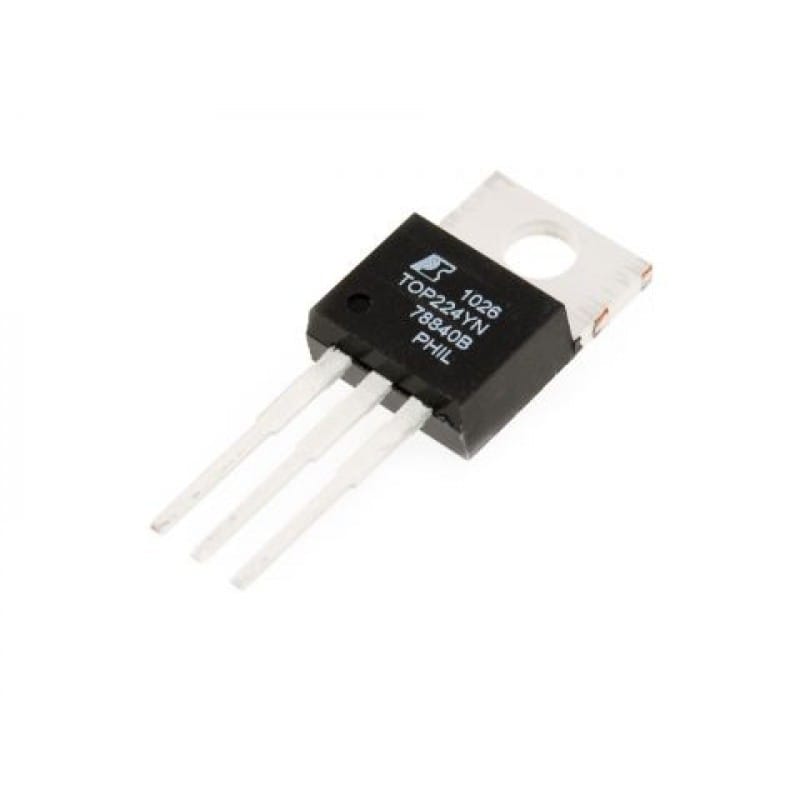

The TOP224YN is a highly integrated AC-DC off-line switcher IC from Power Integrations’ TOPSwitch family, designed to build efficient, compact, and reliable switch-mode power supplies (SMPS). It integrates a high-voltage power MOSFET, PWM controller, oscillator, soft-start, and comprehensive protection circuitry into a single device, significantly reducing external component count and simplifying power supply design.

The TOP224YN is ideal for low to medium power AC-DC converters, offering high efficiency, low standby power consumption, and excellent reliability. It is widely used in power adapters, chargers, consumer electronics, and auxiliary power supplies.

Click here to view related products

Applications

• AC-DC adapters and chargers
• Switch-mode power supplies (SMPS)
• Consumer electronics and home appliances
• Industrial control auxiliary power supplies
• LED power supplies
• Set-top boxes and TV standby supplies
• Auxiliary and standby power supplies

Features

• Type: AC-DC off-line switcher IC with integrated MOSFET
• Manufacturer: Power Integrations
• Family: TOPSwitch
• Integrated high-voltage power MOSFET
• Wide AC input range: 85–265V AC (with proper design)
• High efficiency and low no-load / standby power consumption
• Built-in soft-start, current limiting, thermal shutdown, and over-voltage protection
• Auto-restart fault protection
• Frequency jittering for reduced EMI
• Requires minimal external components
• Package: TO-220 / eSIP-7 (YN package)
• High reliability and long service life

TOP224YN-IC Datasheet
