EDR-75-48 Mean Well Power Supply
₹3,999.00 (incl. tax)
ICL-28R Mean Well Power Supply
₹5,999.00 (incl. tax)
WDR-60-12 Mean Well Power Supply
₹5,999.00 (incl. tax)
| Quantity | Price | Discount |
|---|---|---|
| 2-4 | ₹5,819.03 | 3% |
| 5-9 | ₹5,699.05 | 5% |
| 10+ | ₹5,519.08 | 8% |
Description

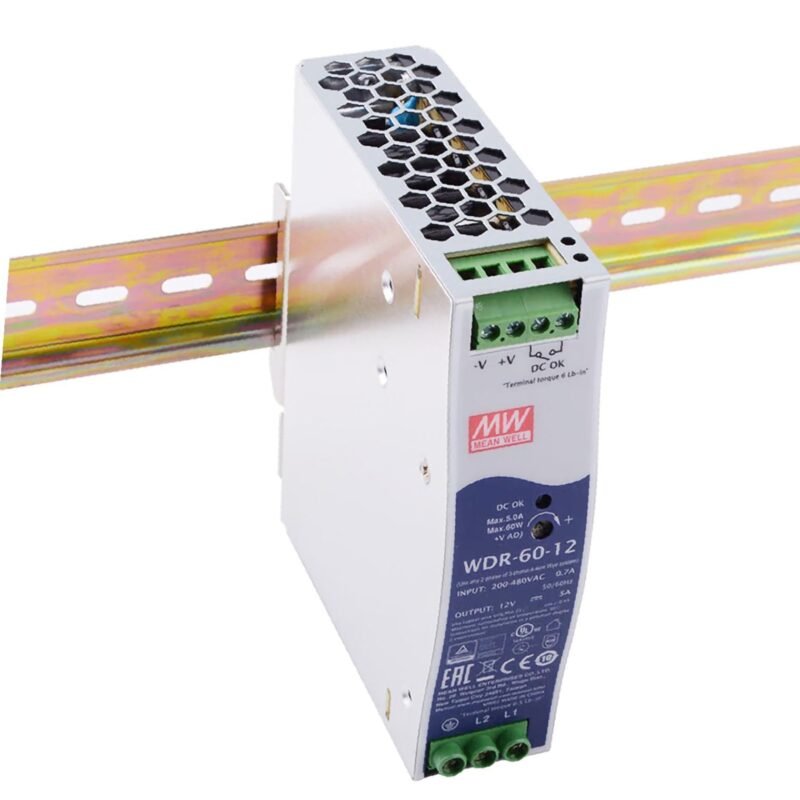

WDR-60-12 Mean Well Power Supply
Click here to view related products
Key Features
- Single and two phase wide input range 180 ~ 550Vac
- Ultra slim design with space-saving widths (32mm to 63mm depending on model)
- Built-in active PFC function (WDR-240 and WDR-480 models)
- High efficiency up to 93% with low power dissipation
- Protections: Short circuit, Overload, Over voltage, and Over temperature
- Cooling by free air convection with wide operating temperature range
- Built-in DC OK relay contact
- EN61000-6-2 (EN50082-2) industrial immunity level compliant
- 100% full load burn-in test and 3-year warranty
Specifications
- Manufacturer : MEAN WELL
- Series : WDR-60
- Mounting Type : DIN Rail
- Input Voltage (AC) : 180 ~ 550Vac (Single/Two-Phase)
- Input Voltage (DC) : 254 ~ 780Vdc
- OUTPUT VOLTAGE : 12V
- VOLTAGE ADJ. RANGE : 12 ~ 15V
- RATED CURRENT(Max.) : 5A
- RATED POWER(Max.) : 60W
- EFFICIENCY (Typ.) : 83.5%
- Inrush Current (Max.) : 50A
- Operating Temperature : -30C ~ +85C
- Protections : Short Circuit (SCP), Overload (OLP), Overvoltage (OVP)
- Dimensions (W x H x D) : 32 x 125.2 x 102 mm
For more details please check Datasheet
WDR-60 Datasheet
*Product image for illustration purposes only, actual product may vary.
