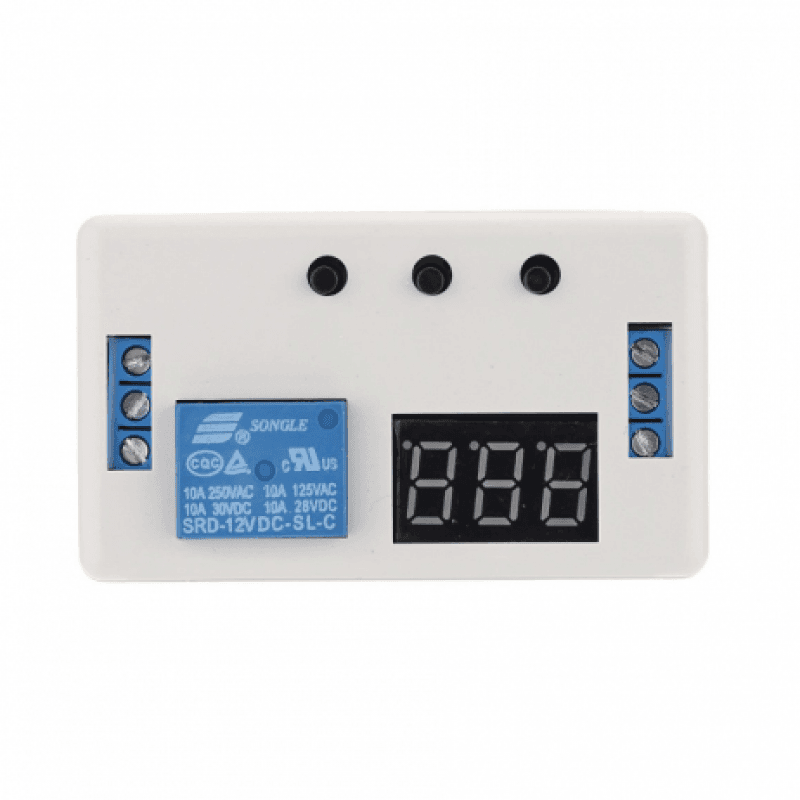

12V Relay Module with Automatic Delay Timer

598.00 + GST

Share with Friends

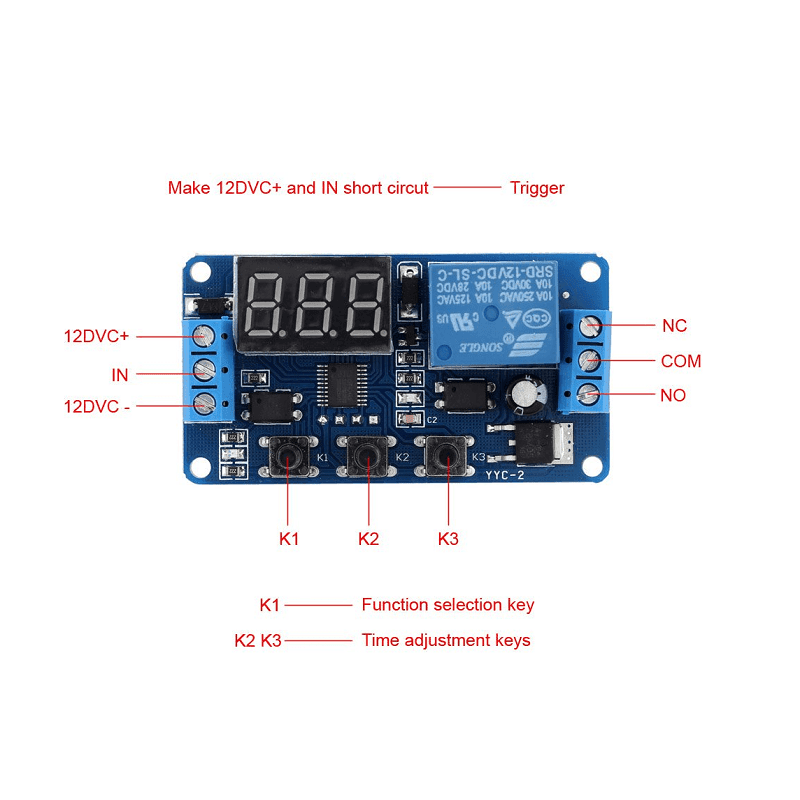

This is a relay module with an automatic delay timer. The module consists of a 12V relay along with a three-digit seven-segment display. The module is based on an N76E003AT20 microcontroller. The module has three buttons one to control the function and others to set the delay time.


  1. Increase the power supply anti-reverse function.
  2. The use of opto isolated input and output enhanced anti-jamming capability and consumption.
  3. The last setting parameters can be memorized after power off.
  4. A signal terminal voltage signal can be maintained for a long time.
  5. To ensure stability, industrial grade PCB board.

Specifications :-

Timing Range(Selectable) 0.1~99.9 seconds
1~999 seconds
1~999 minutes
Operating Voltage (VDC) 12
Signal Voltage 4 20VDC
Output Capacity Can Control the Load within DC 30V 5A or AC 220V 5A
Static Current 20mA
Working Current 50mA
Operating Temperature (C) -40 to 85
Length (mm) 68
Width (mm) 40
Height (mm) 25
Weight (gm) 44

* product image for illustration purposes only. actual product may vary.
