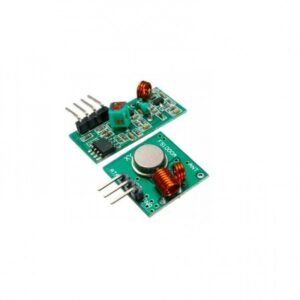

433MHz Transmitter Receiver Wireless Module

119.00 Excluding tax

Availability: In stock

Spread the components

.This hybrid 433Mhz RSI Wireless Transmitter Receiver Module provides a complete RF transmitter and receiver module solution which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source.

The transmitter module is very simple to operate and offers low current consumption (typical. 11mA). Data can be supplied directly from a microprocessor or encoding device, thus keeping the component count down and ensuring a low hardware cost.

The RX – ASK is an ASK Hybrid receiver module. The RF Transceiver Module is an effective low-cost solution for using 433 MHz. The TX-ASK is an ASK hybrid transmitter module. TX-ASK is designed by the saw resonator, with an effective low cost, small size and simple to use for designing.

Note: The product shown in the video section is just for illustrative purposes. The actual product is as looks like the main image.

Applications :-

  • Remote Controls
  • Automation System
  • Wireless Security System
  • Sensor Reporting
  • Car Security System
  • Remote Keyless Entry

Note: This device will not support direct UART communication when connected to PC or microcontrollers as there is a lot of noise always available on these frequencies.

Features :-

  • Low Power Consumption.
  • Easy For RF-based Application.
  • Complete Radio Transmitter.
  • Transmit Range Up To 50m.
  • CMOS / TTL Input.
  • No Adjustable Components.
  • Very Stable Operating Frequency
  • Low Current Consumption (Typ 11mA)
  • Wide Operating Voltage (1.5-5v)

Specifications :-

Range in Open Space(m) 30
Transmitter Frequency Range(MHz) 433.92
Receiver Frequency Range(MHz) 433
Sensitivity 105 dBm
Receiver Supply Current(mA) 3.5
RX IF Frequency(MHz) 1
Receiver Operating Voltage(V) 5
Transmitter Supply Voltage(V) 3 to 6
Transmitter Output Power(dBm) 4 to 12
TX Module Size(mm) 13x12x4 (LxWxH)
RX Module Size(mm) 13x45x4 (LxWxH)

Applications :-

  • Remote Controls
  • Automation System
  • Wireless Security System
  • Sensor Reporting
  • Car Security System

* product image for illustration purposes only. actual product may vary.
