Battery protection board, as the name suggests battery protection board is mainly rechargeable (Refers to the lithium battery) and protects the integrated circuit board. As the lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with sampling resistor, and a current fuse.

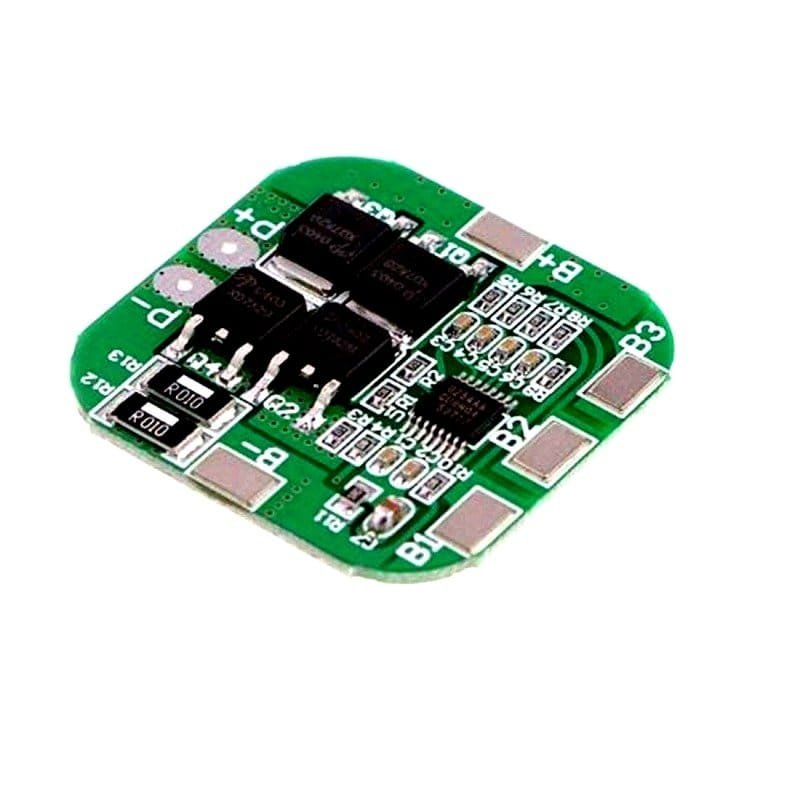

Providing all above features this 4S BMS board can combine 4 x 18650 battery to form a battery pack to provide up to 15V DC output at 15A current which can be used for heavy applications.
- Overcharging and Over Discharging Protection
- Short circuit protection: Yes

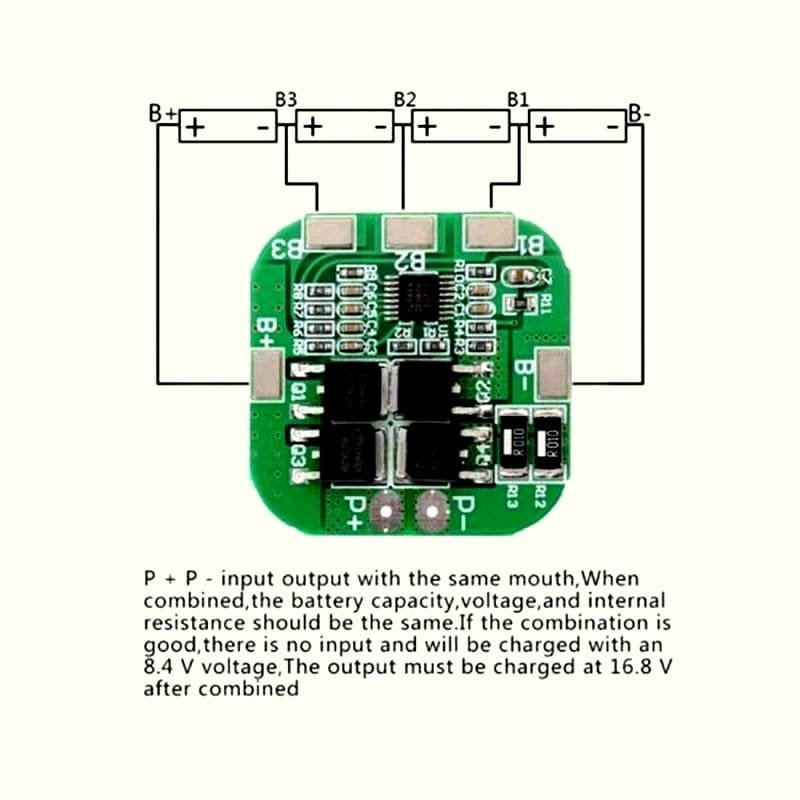

- Applicable assembly: Nominal 3.7V Batteries / 4 strings.
|Model||HX-4S-D20 Rev 1.1|
|Charging voltage range||16.8V|
|Over-discharge recovery voltage||2.5v±0.05v,|
|Maximum Working Current||10A|
|Maximum Peak current||15A|
|Static current||Less than 8uA|
|Resistance||Less than 4m|
* product image for illustration purposes only. actual product may vary.
