BC368 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor’s terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.
Features:-
• Advanced process technology
• Low error voltage
• Fast switching speed
• Full-voltage operation
• High power and current handling capability
Specifications:-
| Transistor Polarity | NPN |
| Collector-Emitter Breakdown Voltage (BVCEO) | 20VDC |
| Collector-Emitter Voltage (VCEO) | 20VDC |
| Emitter-Base Voltage (VEBO) | 5VDC |
| Continuous Collector Current (IC) | 1A |
| Emitter−Base Breakdown Voltage (VBEBO) | 5VDC |
| Transition Frequency (fT) | 65MHz |
| DC Current Gain (hFE) | 85-375 |
| Operating Temperature Range | -55 – 150°C |
| Power Dissipation (PD) | 1.5W |

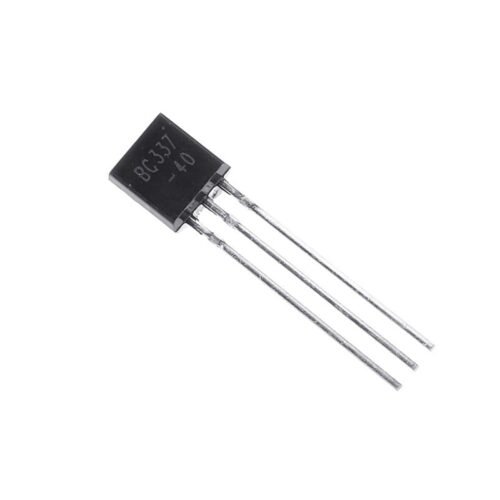

* product image for illustration purposes only. actual product may vary.
