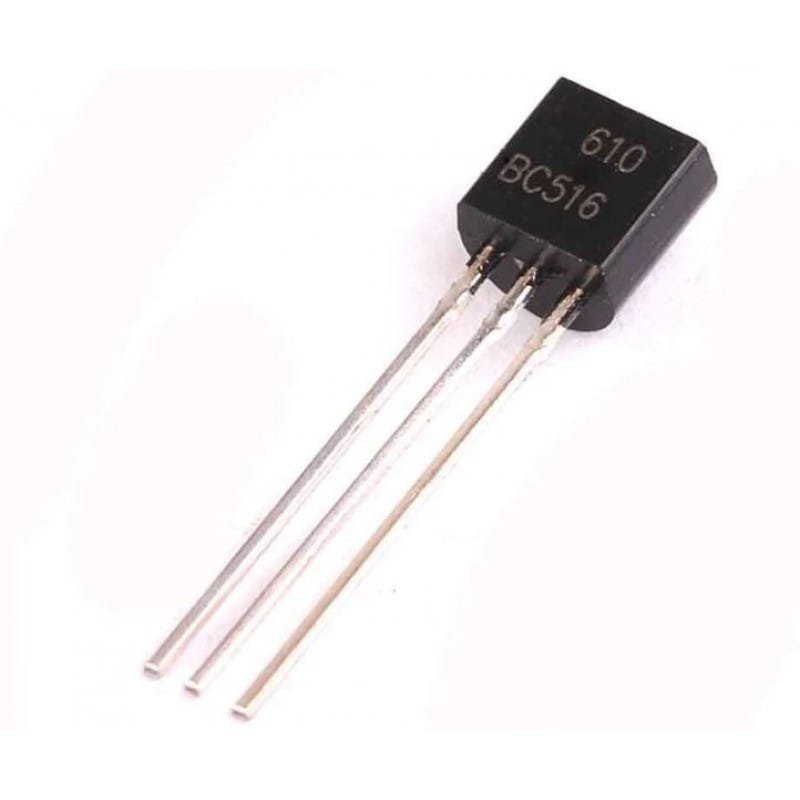

BC516 PNP Darlington Transistor 30V 1A TO-92 Package

19.00 Excluding tax

Category: Tag:
Spread the components

BC516 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor’s terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.

Features:-

• Advanced process technology

• Low error voltage

• Fast switching speed

• Full-voltage operation

• High power and current handling capability

Specifications:-

Transistor Polarity PNP
Collector-Base Voltage (VCBO) 40V
Collector-Emitter Voltage (VCEO) 30V
Emitter-Base Voltage (VEBO) 10V
Continuous Collector Current (IC) 1A
Collector-Emitter Breakdown Voltage (VCEO) 30V
Base-Emitter On Voltage (VBE(on)) 1.4V
Transition Frequency (fT) 200MHz
Operating Temperature Range -55 – 150°C
Power Dissipation (PD) 625mW

bc516-transistor-datasheet

* product image for illustration purposes only. actual product may vary.
