The CT60AM-18F is an Insulated Gate Bipolar Transistor which is a simple drive and has VCES of 900V, IC of 60A and Integrated fast-recovery diode. The CT60AM-18F has a low VCE Saturation Voltage and small tail loss.
Applications:-
• Microwave oven
• Electromagnetic cooking devices
• Rice-cookers
• Voltage-resonant inverter circuit electric appliances
Specifications:-
| Symbol | Parameter | Ratings | Units |
| VCES | Collector-Emitter Voltage | 900 | V |
| VGES | Gate-Emitter Voltage | ±25 | V |
| VGEM | Peak Gate-Emitter Voltage | ±30 | V |
| IC | Collector Current | 60 | A |
| ICM | Collector Current (Pulse) | 120 | A |
| IE | Emitter Current | 40 | A |
| PC | Maximum Power Dissipation | 180 | W |
| Tj | Junction Temperature | –40 ~ +150 | °C |
| Tstg | Storage Temperature | –40 ~ +150 | °C |

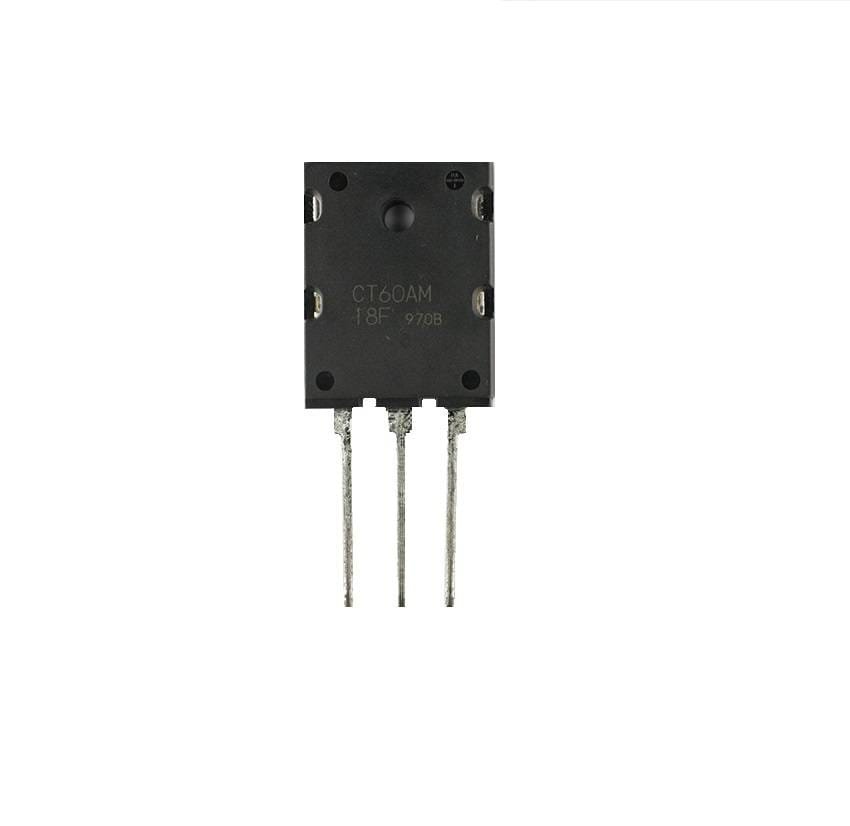

* product image for illustration purposes only. actual product may vary.8541
