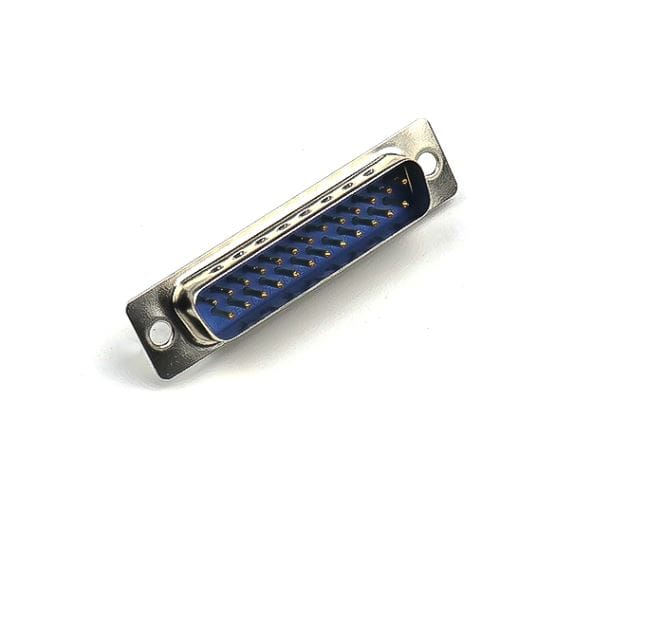

DB25 Male Connector 25 Pin
The DB25 Male Connector (25 Pin) is a standard D-sub type connector designed for reliable and secure data communication between electronic devices. It features a rugged metal shell with 25 precision-aligned male pins, making it ideal for use in RS-232 serial, parallel port, and industrial interface applications.
This connector provides durable and stable electrical connections, commonly used for signal, control, and data transmission in computers and embedded systems. The metal housing ensures excellent shielding against electromagnetic interference (EMI), while the robust construction guarantees long service life even under repeated insertions.
Click here to view the related products
Features
- Standard DB25 (25-pin) male connector with solder termination.
- Nickel-plated metal shell for durability and EMI protection.
- Gold or tin-plated contacts ensure reliable conductivity.
- Compatible with DB25 female connectors and parallel/serial interfaces.
- Mounting holes for secure panel or chassis installation.
- Suitable for RS-232, RS-422, and general data communication.
Specifications :-
| Connector Type | DB-25 |
| Connector | Male |
| Voltage Rating (V) | 250V AC |
| Current Rating (A) | 5 |
| Insulation Resistance (M) | 1000 |
| Contact Resistance | 20m |
| Operating Temperature Range (C) | -55 to 125 |
| Material | Metal and plastic |
| Length (mm) | 53 |
| Width (mm) | 12 |
| Height (mm) | 15 |
Applications
- RS-232 and RS-422 serial communication ports
- Industrial control and instrumentation systems
- Computer parallel or peripheral interfaces
- Embedded electronics and automation boards
- Test and measurement equipment
*Product image for illustration purposes only, actual product may vary.
