R305 is a finger print sensor module with TTL UART interface. The user can store the finger print data in the module and can configure it in 1:1 or 1: N mode for identifying the person. The finger print module can directly interface with 3v3 or 5v Microcontroller. A level converter (like MAX232) is required for interfacing with PC.
Difference Between R305 and R307 Finger print module:-
R305 R307
Storage Capacity (Fingerprints) 250 1000
3.3V Operation No yes
USB Operation No yes
Finger Detect Output No yes
Features:-
- Integrated image collecting and algorithm chip together, All-in-one
- Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
- Low power consumption, low cost, small size, excellent performance
- Professional optical technology, precise module manufacturing techniques
- Good image processing capabilities, can successfully capture image up to resolution 500 dpi
Specifications:-
Power DC : 3.6V-6.0V
Interface : UART (TTL logical level)/ USB 1.1
Working current : 100mA
Peak Current : 150mA
Matching Mode: 1:1 and 1:N
Baud rate (9600*N)bps, N=1-12 (default N=6 57600bps)
Character file size: 256 bytes
Image acquiring time : <0.5s
Template size : 512 bytes
Storage capacity: 120
Security level : 5 (1, 2, 3, 4, 5(highest))
FAR : <0.001%
FRR: <0.1%
Average searching time: < 0.8s (1:880)
Window dimension : 18mm*22mm

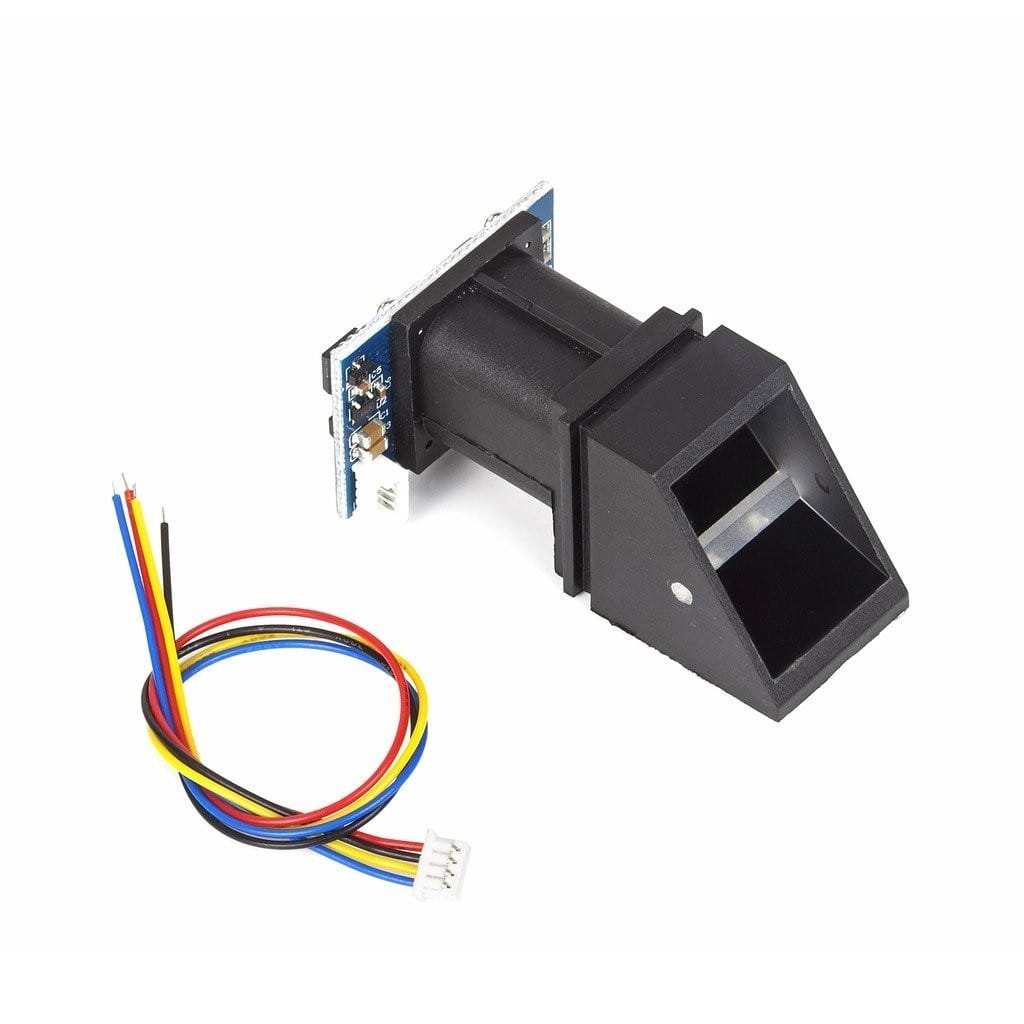

* product image for illustration purposes only. actual product may vary.
