R307 Fingerprint Module consists of optical fingerprint sensor, high-speed DSP processor, high-performance fingerprint alignment algorithm, high-capacity FLASH chips and other hardware and software composition, stable performance, simple structure, with fingerprint entry, image processing, fingerprint matching, search and template storage and other functions.
Difference Between R305 and R307 Finger print module:-
R305 R307
Storage Capacity (Fingerprints) 250 1000
3.3V Operation No yes
USB Operation No yes
Finger Detect Output No yes.
R307 is a finger print sensor module with TTL UART interface. The user can store the finger print data in the module and can configure it in 1:1 or 1: N mode for identifying the person. The FP module can directly interface with 3v3 Microcontroller. A level converter (like MAX232) is required for interfacing with PC. The R307 fingerprint module has two interface TTL UART and USB2.0, USB2.0 interface can be connected to the computer; RS232 interface is a TTL level, the default baud rate is 57600 , can be changed, refer to a communication protocol ; can And microcontroller, such as ARM, DSP and other serial devices with a connection, 3.3V 5V microcontroller can be connected directly. Needs to connect the computer level conversion, level conversion note , embodiments such as a MAX232 circuit.
Pinouts :-
Pin# Pin Name Details
1 5V Regulated 5V DC
2 GND Common Ground
3 TXD Data output – Connect to MCU RX
4 RXD Data Input – Connect to MCU TX
5 TOUCH Active Low output when there is touch on sensor by finger
6 3.3V Use this wire to give 3.3V to sensor instead of 5V
USB Cable Connections are 5V/D+/D-/GND (Optional)
Features:-
- Supply voltage: DC 4.2 ~ 6.0V
- Supply current: Working current: 50mA (typical) Peak current: 80mA
- Fingerprint image input time: <0.3 seconds
- Window area: 14×18 mm
- Matching method: Comparison method (1: 1)
- Search method (1: N)
- Characteristic file: 256 bytes
- Template file: 512 bytes
- Storage capacity: 1000 pieces
- Security Level: Five (from low to high: 1,2,3,4,5)
- Fake rate (FAR): <0.001%
- Refusal rate (FRR): <1.0%
- Search time: <1.0 seconds (1: 1000 hours, mean value)
- Host interface: UART \ USB1.1
- Communication baud rate (UART): (9600xN) bps Where N = 1 ~ 12 (default N = 6, ie 57600bps)
- Working environment: Temperature: -20 ℃ – +40 ℃ Relative humidity: 40% RH-85% RH (no condensation)
- Storage environment: Temperature: -40 ℃ – +85 ℃ Relative humidity: <85% H (no condensation)

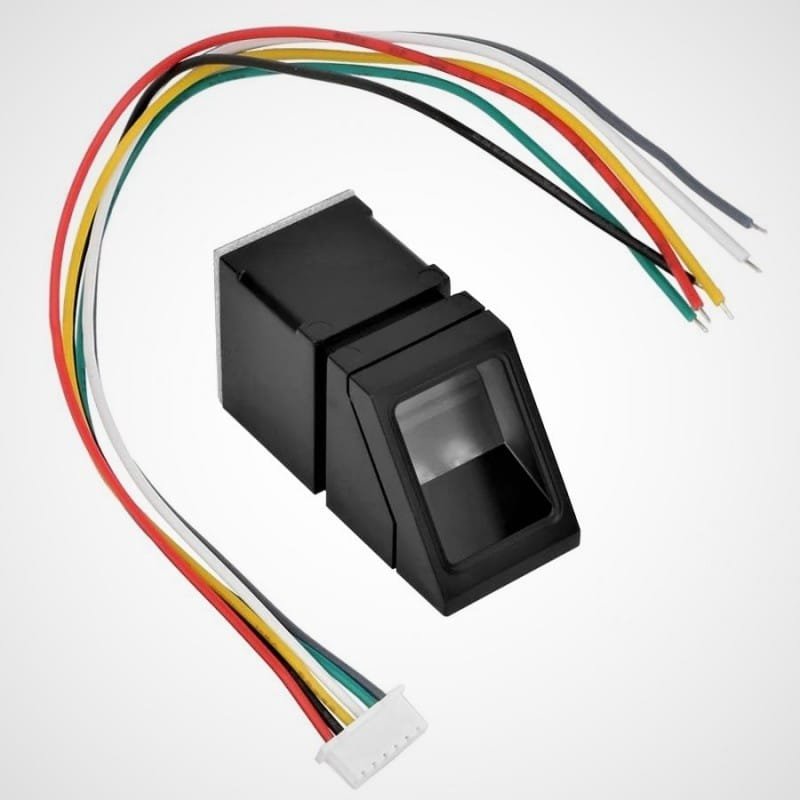

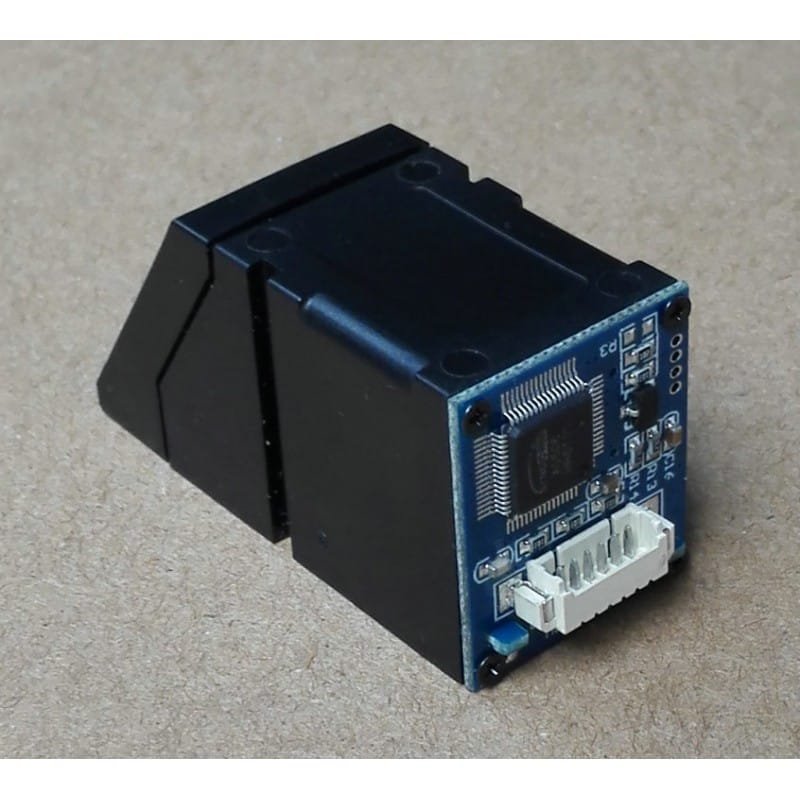

* product image for illustration purposes only. actual product may vary.
