IRF510 MOSFET 100V 5.6A N Channel Power TO-220 Package

IRF510 MOSFET 100V 5.6A N Channel Power TO-220 Package

The IRF510 is a N-Channel Power MOSFET designed for medium-voltage, medium-current switching applications. Rated at 100V and 5.6A, it features low on-resistance (RDS(on)), fast switching, and reliable thermal performance, making it suitable for power amplifiers, switch-mode power supplies, and general-purpose switching circuits.

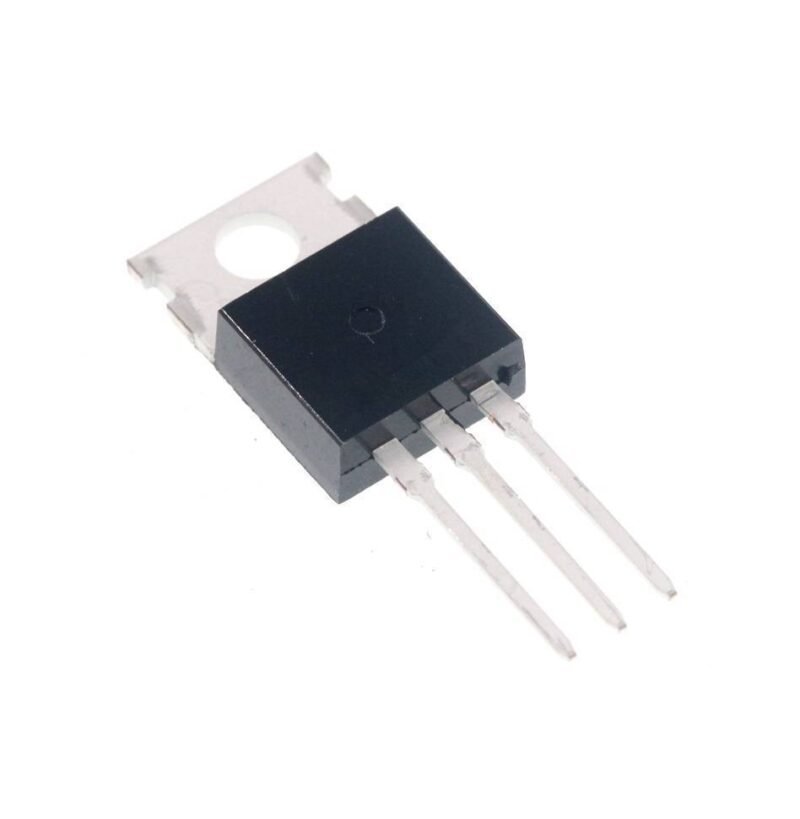

Encased in a TO-220 package, the IRF510 provides efficient heat dissipation, mechanical stability, and easy mounting, ensuring reliable operation under moderate voltage and current conditions. Its robust construction makes it a popular choice for hobby electronics, industrial circuits, and audio amplifier designs.

Click here to view the related products

• Type: N-Channel Power MOSFET
• Drain-Source Voltage (Vds): 100V
• Continuous Drain Current (Id): 5.6A
• Package Type: TO-220
• Features:
• Medium-voltage and medium-current handling capability
• Low RDS(on) for energy-efficient switching
• Fast switching for moderate-frequency circuits
• Reliable thermal performance
• Durable TO-220 packaging for heat management and mounting

Applications

• Audio Amplifiers: Power MOSFET for medium-power audio stages
• Switch Mode Power Supplies (SMPS): Efficient DC–DC conversion
• Motor Drives: Moderate-current AC/DC motor control
• Industrial Automation: General-purpose switching in machinery
• Hobby Electronics: DIY projects and prototyping circuits
• Signal Switching: Medium-current load control
