LI60-20B24PR2 Mornsun SMPS – 24V 2.5A 60W AC/DC DIN Rail Power Supply

LI60-20B24PR2 is Mornsun’s AC-DC converter featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC are safety approved to IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These light weight AC-DC converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.

Specifications :-

Features :-

• Universal 85 – 264VAC or 120 – 370VDC Input voltage
• Accepts AC or DC input (dual-use of same terminal)
• Operating ambient temperature range: -40? to +70?
• High I/O isolation test voltage up to 4000VAC
• Industrial product technology design
• Over-voltage class III (Designed to meet EN61558 safety standards)
• Low standby power consumption, high efficiency
• Low ripple & noise
• Output short circuit, over-current, over-voltage protection
• Withstand 300VAC surge input for 5s
• EN62368 safety approved

LI60-20BxxPR2 Datasheet

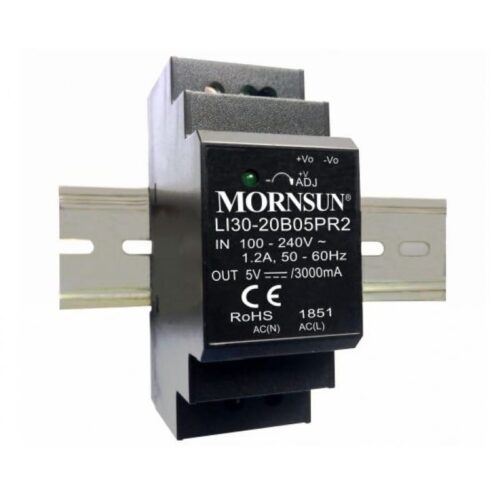

* product image for illustration purposes only. actual product may vary.
