MCP2510 CAN Controller Interface IC DIP-18 Package

160.00 Excluding tax

Spread the components

The Microchip Technology Inc. MCP2510 is a Full Controller Area Network (CAN) protocol controller implementing CAN specification V2.0 A/B. It supports CAN 1.2, CAN 2.0A, CAN 2.0B Passive, and CAN 2.0B Active versions of the protocol, and is capable of transmitting and receiving standard and extended messages. It is also capable of both acceptance filtering and message management. It includes three transmit buffers and two receive buffers that reduce the amount of microcontroller (MCU) management required. The MCU communication is implemented via an industry standard Serial Peripheral Interface (SPI) with data rates up to 5 Mb/s.

Features:-

  • Implements Full CAN V2.0A and V2.0B at 1 Mb/s: – 0 – 8 byte message length
    • Standard and extended data frames
    • Programmable bit rate up to 1 Mb/s
    • Support for remote frames
    • Two receive buffers with prioritized message storage
    • Six full acceptance filters
    • Two full acceptance filter masks
    • Three transmit buffers with prioritization and abort features
    • Loop-back mode for self test operation
  • Hardware Features:
    • High Speed SPI Interface (5 MHz at 4.5V I temp)
    • Supports SPI modes 0,0 and 1,1
    • Clock out pin with programmable prescaler
    • Interrupt output pin with selectable enables
    • ‘Buffer full’ output pins configureable as interrupt pins for each receive buffer or as general purpose digital outputs
    • ‘Request to Send’ input pins configureable as control pins to request immediate message transmission for each transmit buffer or as general purpose digital inputs
    • Low Power Sleep mode
  • Low power CMOS technology:
    • Operates from 3.0V to 5.5V
    • 5 mA active current typical
    • 10 µA standby current typical at 5.5V
  • 18-pin PDIP/SOIC

Specification:-

Parameter Value
VDD 7.0V
All inputs and outputs w.r.t. VSS -0.6V to VDD +1.0V
Storage temperature -65°C to +150°C
Ambient temp. with power applied 65°C to +125°C
Soldering temperature of leads (10 seconds) +300°C
ESD protection on all pins ≥ 4 kV

mcp2510-ic-datasheet

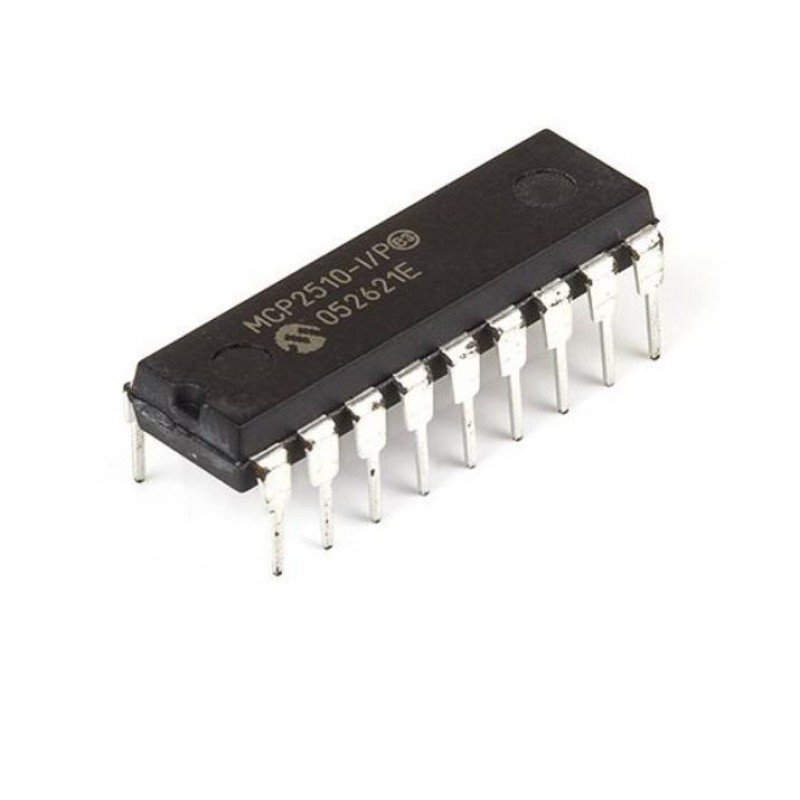

* product image for illustration purposes only. actual product may vary.
