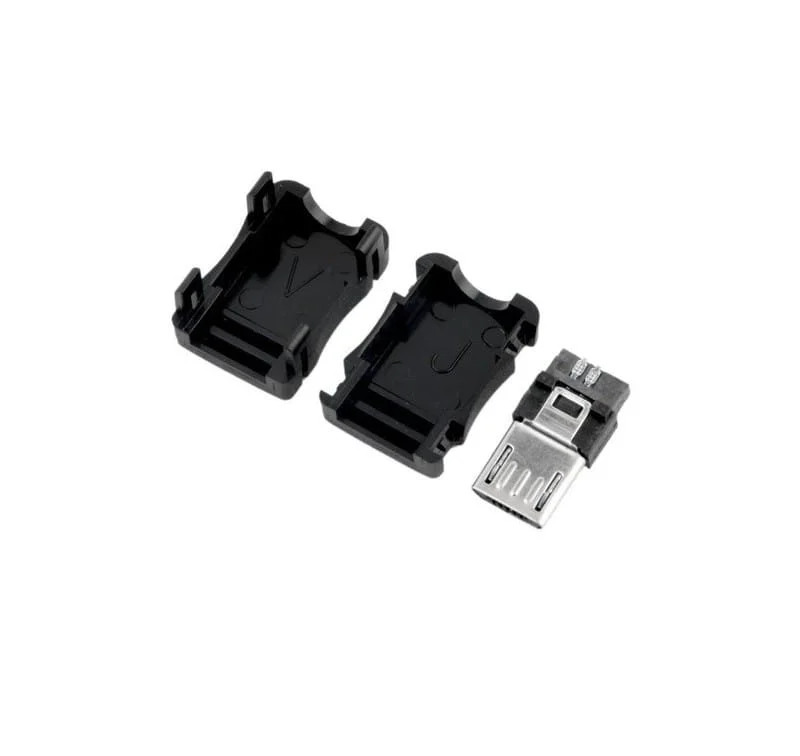

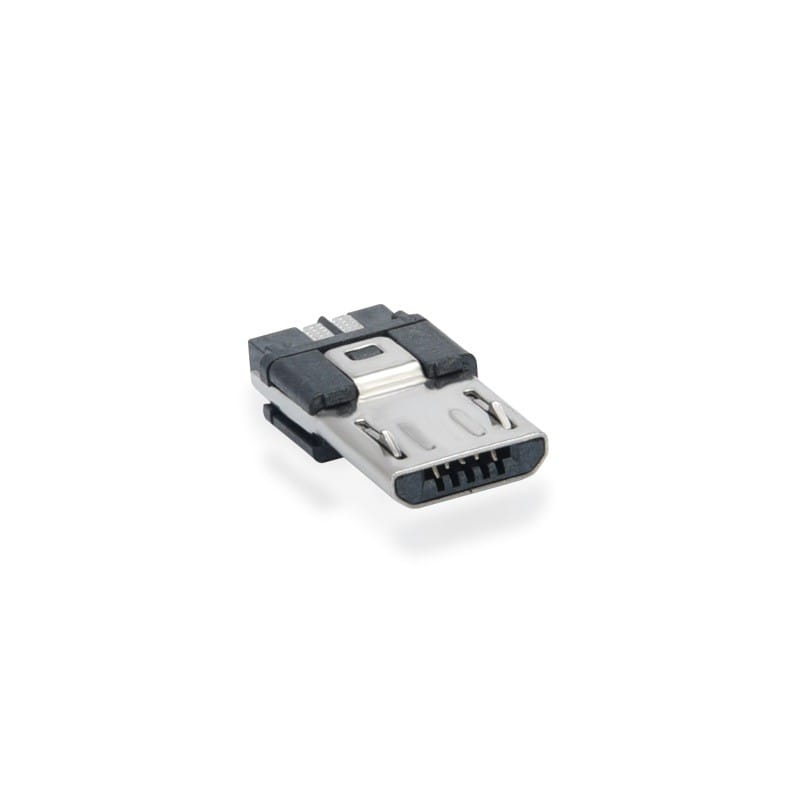

Micro USB 5pin Male Connector for Charging and Data Transfer

Micro USB 5pin Male Connector for Charging and Data Transfer

The Micro USB 5-Pin Male Connector is a compact and reliable interface designed for charging, power delivery, and high-speed data transfer between devices. Commonly used in smartphones, tablets, Arduino boards, power banks, and embedded systems, this connector provides a secure and efficient electrical connection in a small footprint.

This male connector features 5 contact pins that support both USB 2.0 communication and DC power transfer, making it ideal for integration into various DIY electronics projects, custom USB cables, and repair applications.

Click here to view the related products

Features

• Micro USB Type-B 5-pin male connector for compact devices
• Supports both charging and data transfer functions
• Durable and reliable contacts ensure long service life
• Compact and lightweight design suitable for tight PCB layouts
• Solder-type terminals for easy integration with cables or circuit boards
• Corrosion-resistant metal housing provides shielding from interference
• Widely compatible with smartphones, Arduino boards, and USB devices

Specifications:

• Micro USB Connector Type B Male USB 5 Pin Plug Connector
• Material: ABS Plastic
• USB Micro: USB 2.0 (USB-B 5 Pin)
• Color: Black
• Pin: Nickel Plated Steel Pin
• Shape: Rectangle
• Package: SMD Type
• Dimension in: mm
• Length: 15mm
• Width: 10mm
• Height: 7mm
• Approx Weight: 1gm

Applications

• USB charging cables and adapters
• Data transfer cables for smartphones and tablets
• Arduino and Raspberry Pi projects
• Embedded systems and development boards
• Power banks and portable devices
• DIY electronic repair and prototyping
