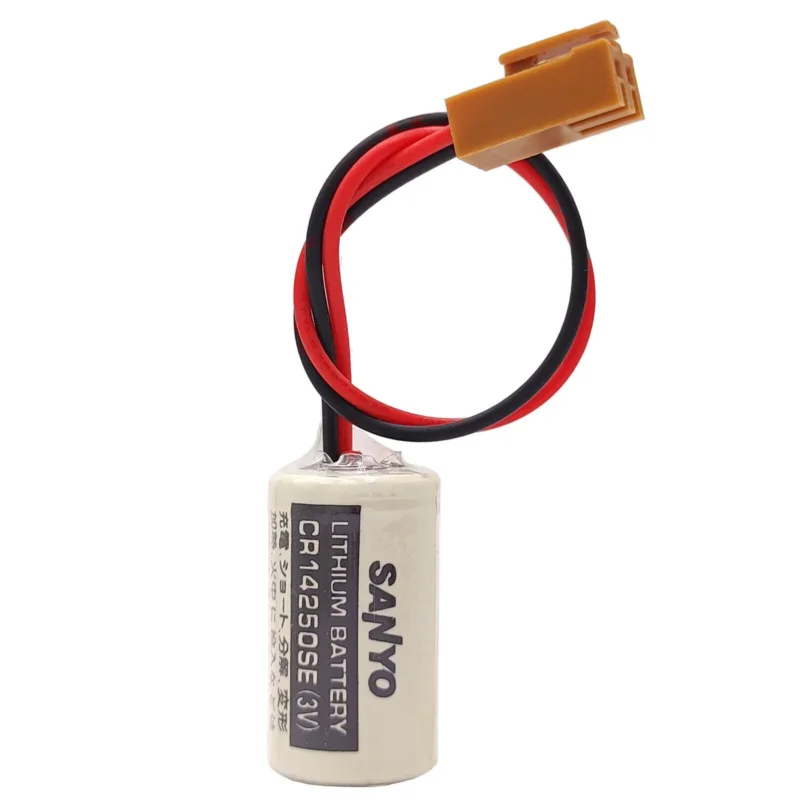

High Capacity Cylindrical Laser Sealed Primary Lithium Battery.
- Specification of CR14250SE High Capacity Cylindrical Laser Sealed Primary Lithium Battery Nominal Capacity *1 Nominal Voltage Standard Discharge Current Max.
- Discharge Current Continuous *2 Pulse *3 Temperature Range Weight Dimensions Height (H) Diameter (D) *1 850 mAh 3V 0,5 mA 7 mA 70 mA -40°C ~ +85°C 9g 25 ,0 mm 14,5 mm Nominal capacity is determined to an end voltage of 2,0V when t he battery is allowed to discharge at a standard current level at 23°C.
- Current value is determined so that 50% of t he nominal capacity is obtained with an end voltage of 2,0V at 23°C.
- Current value for obtaining.
- Brand : SANYO
- Model Number : CR14250SE
- Battery Shape : Cylinder
- Voltage : 3V
- Capacity : 850mAh
- Temperature range : -40 ℃～ +85 ℃
- Weight : 10gm
- Diameter : 14mm
* product image for illustration purposes only. actual product may vary.
