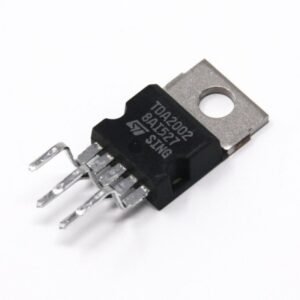

TDA2002 8W Hi-Fi Audio Power Amplifier IC TO-220-5 Package

84.00 Excluding tax

Category: Tags: ,
Spread the components

The TDA2002 is a class-B audio power amplifier in a Pentawatt package designed for driving low impedance loads (down to 1.6 ohm).

This device provides a high output current capability (up to 3.5A) and has very low harmonic and crossover distortion. The device incorporates a short-circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the operating point of the output transistors within their safe operating range. A conventional thermal shutdown system is also included.

Features:-

  • High output current
  • Very low harmonic and crossover distortion
  • Short-circuit protection
  • Thermal shutdown
  • High Reliability

Specifications:-

Symbol Parameter Value Unit
VS Peak Supply Voltage 40 V
VS DC Supply Voltage 28 V
VS Operational Supply Voltage 18 V
IO Peak Output Current (Internally Limited) 3.5 A
PTOT Total power dissipation at T case = 90 °C 15 W
TSTG, TJ Storage and junction temperature – 40 to + 150 °C

tda2002-ic-datasheet

* product image for illustration purposes only. actual product may vary.
