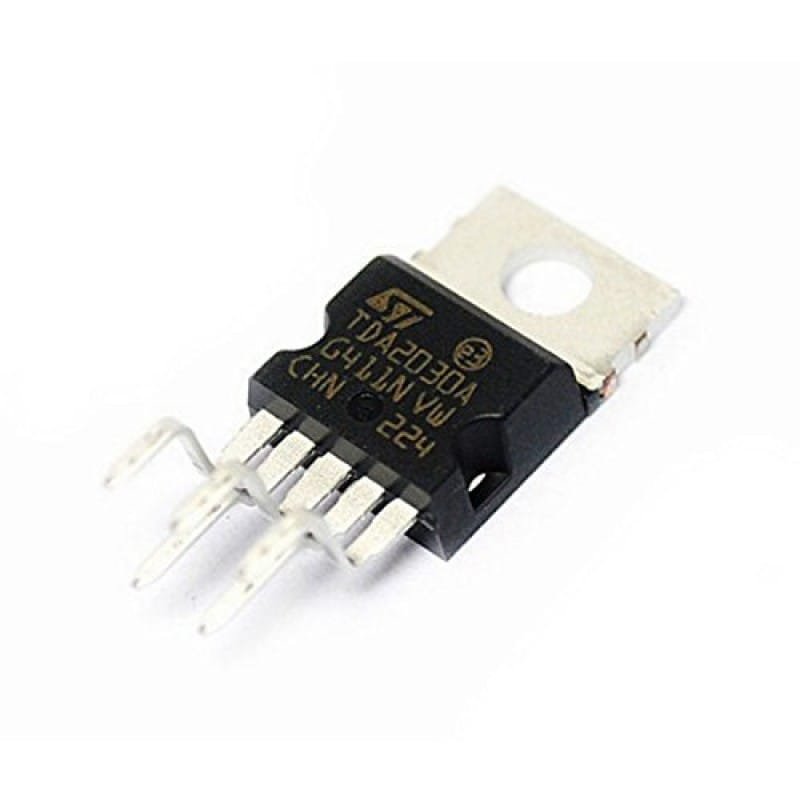

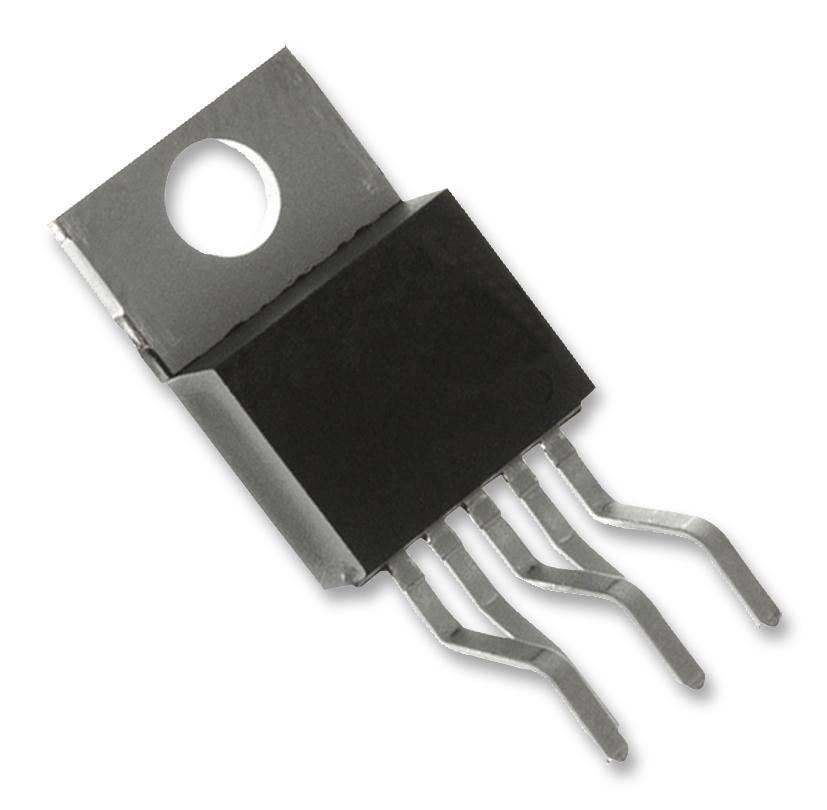

The TDA2030 is a monolithic IC in a Pentawatt package intended for use as a low-frequency class-AB amplifier. With VS max = 44 V it is particularly suited for more reliable applications without regulated supply and for 35 W driver circuits using low-cost complementary pairs. The TDA2030 provides high output current and has very low harmonic and crossover distortion. The device incorporates a short-circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the operating point of the output transistors within their safe operating range. A conventional thermal shutdown system is also included.
- Output power 18 W at VS = ±16 V / 4 Ω with 0.5% distortion
- High output current
- Very low harmonic and crossover distortion
- Short-circuit protection
- Thermal shutdown
|VS||Supply Voltage||± 22||V|
|VI||Differential Input Voltage||± 15||V|
|IO||Peak Output Current (Internally Limited)||3.5||A|
|PTOT||Total power dissipation at T case = 90 °C||20||W|
|TSTG, TJ||Storage and junction temperature||– 40 to + 150||°C|
* product image for illustration purposes only. actual product may vary.
