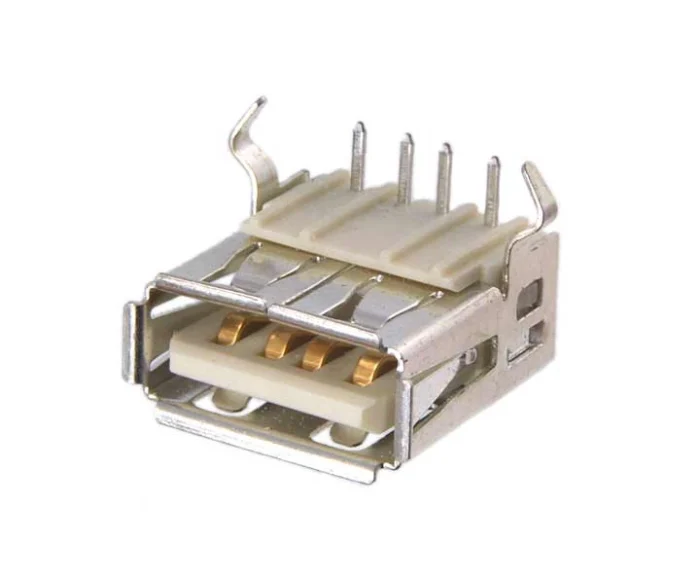

USB 2.0 Type A Female Port Connector Right Angle

USB 2.0 Type A Female Port Connector Right Angle

The USB 2.0 Type A Female Port Connector (Right Angle) is a standard PCB-mount interface socket designed for connecting USB devices to embedded systems, development boards, and other electronic circuits. It supports the USB 2.0 communication standard. The right-angle design allows for horizontal PCB mounting, making it ideal for compact devices where vertical space is limited.
Constructed with a durable metal shell for shielding and four reliable contacts for power and data lines, this connector ensures stable and noise-free communication between host and peripheral devices.

Click here to view related products

Features:

• USB 2.0 standard compliant (supports USB 1.1 and 2.0 devices)
• Right-angle (90°) through-hole PCB mount design
• 4-pin female Type-A interface (VCC, D-, D+, GND)
• Nickel-plated metal shell for EMI shielding
• Gold-plated contacts for improved conductivity and corrosion resistance
• Compact and durable structure for long service life

Specifications:

• Connector Type: USB Type-A Female
• Orientation: Right Angle (Horizontal Mount)
• Mounting Type: Through-hole (DIP)
• Number of Pins: 4
• Rated Voltage: 5 V DC
• Current Rating: Up to 1 A
• Operating Temperature: –20 °C to +85 °C
• Shell Material: Nickel-plated steel

Applications:

• Embedded systems and microcontroller projects
• USB interface expansion for custom PCBs
• Development boards (Arduino, Raspberry Pi accessories, etc.)
• Computer peripherals (keyboards, mice, USB drives)
• Consumer electronics and DIY devices
• Test jigs and programming interfaces
• USB data transfer and charging modules
• Industrial control and automation equipment

*product image for illustration purposes only. actual product may vary.
