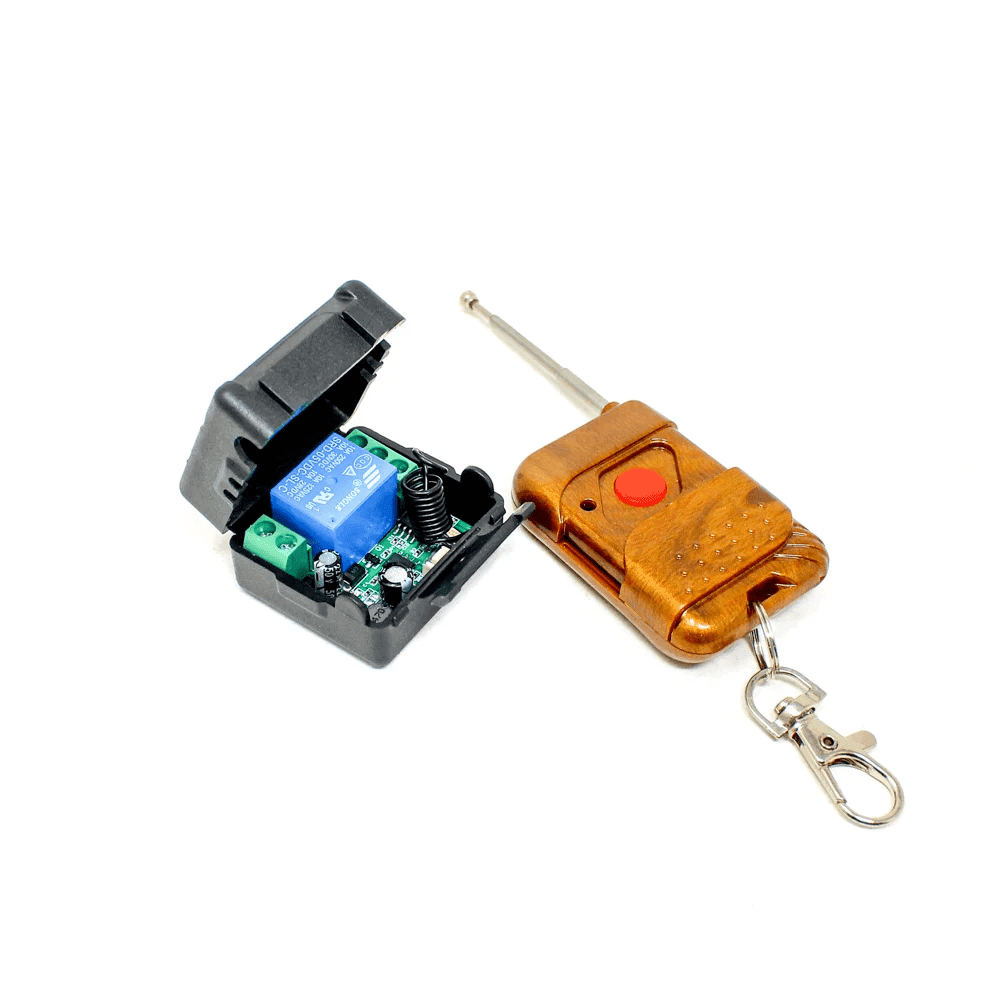

1 Channel 12V RF Wireless Relay Module with Remote Control

1 Channel 12V RF Wireless Relay Module with Remote Control is a one channel latching relay module. The output of the module is a passive output and it can be controlled by its 2-button RF wireless controller when the module is powered on. The module comes equipped with suitable remote control. It also can drive most of household electrical appliances.

The operating frequency for the module is 433 MHz and the operating voltage is 12 v.

Also, the module comes with a dedicated remote. Moreover, the relay used in this module is a high current relay.

There are indicator LEDs on the module for power output status.

Application for this module includes different devices with different current ratings.

Features:-

1. Work status: Self-locking
2. The work instructions LED: LED1(power), LED2(relay)
3. Dedicated remote.
4. Indicator LEDs.
5. Ideal for home automation.

specifications:-

Operating Voltage (VDC)                                         5 ~ 12
Maximum Voltage(V)                                                 12
Supply Current (A)                                                    0.07
Operating Temperature (C)                                  -40 to 90
Operating Distance Range (Meter)                        15 ~ 30
Storage condition (C)                                            -40 to 80
Length (mm)                                                              48
Width (mm)                                                               35
Height (mm)                                                              17

* product image for illustration purposes only. actual product may vary.
