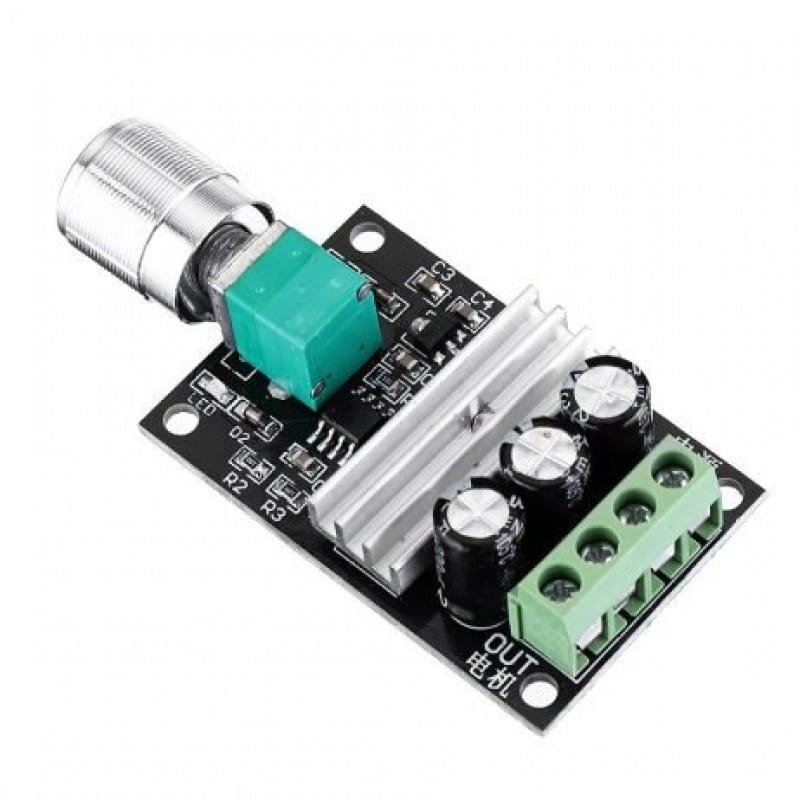

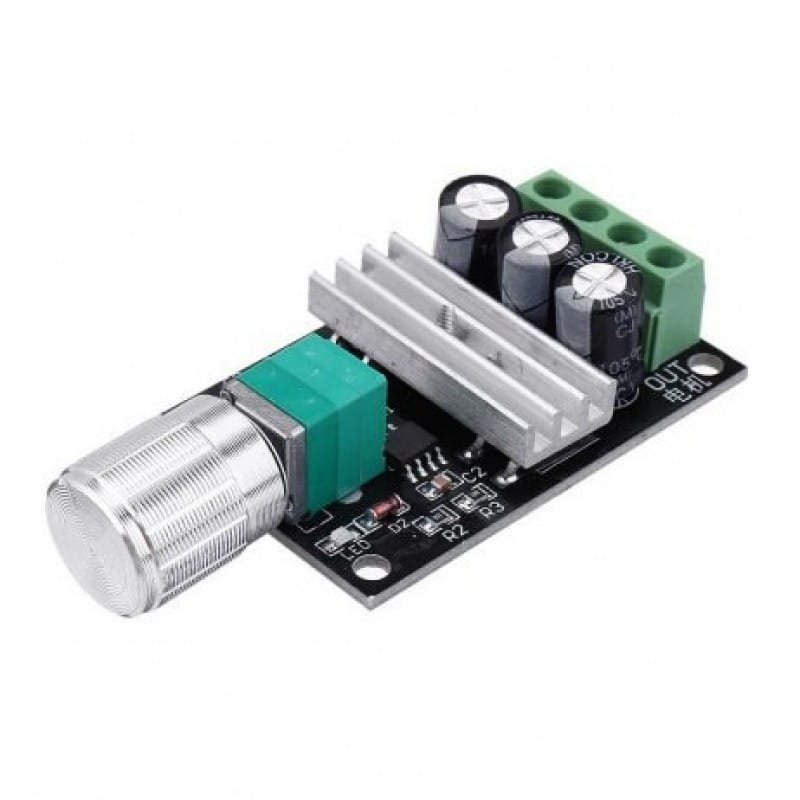

This 1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator allows controlling the speed of a motor with fully adjustable 0%-100%. The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.
Application:-
- This PWM Speed controller is forDC 6V 12V 24V 28V Motor.
Pinouts:-
- Motor+: Motor Positive Terminal
- Motor-: Motor Negative terminal
- Power+: DC 6V 28V
- Power-: Gnd
Note: Product Image May vary in terms of front knob or connector colour according to the availability
Features:-
- Speed of a motor is fully adjustable
- DC 6V 12V 24V 28V Supported
Specifications :-
| Operating Voltage range | DC 6V 28V |
| Operating Current Range | Within 3A |
| Speed range | 0-100% |
| Length (mm) | 65 |
| Width (mm) | 32 |
| Height (mm) | 15 |
| Weight (gm) | 25 |
* product image for illustration purposes only. actual product may vary.
