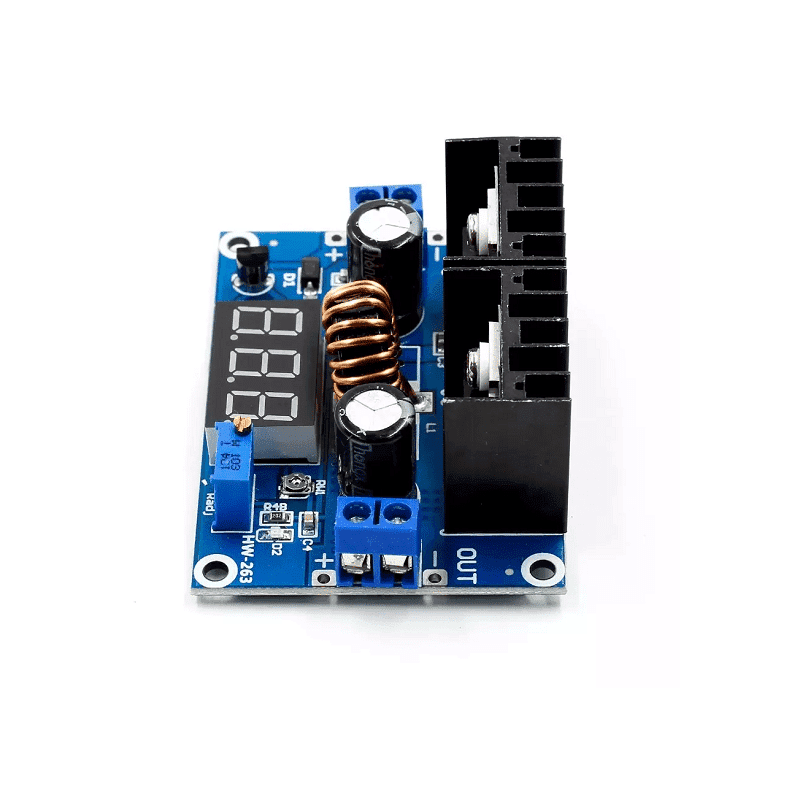

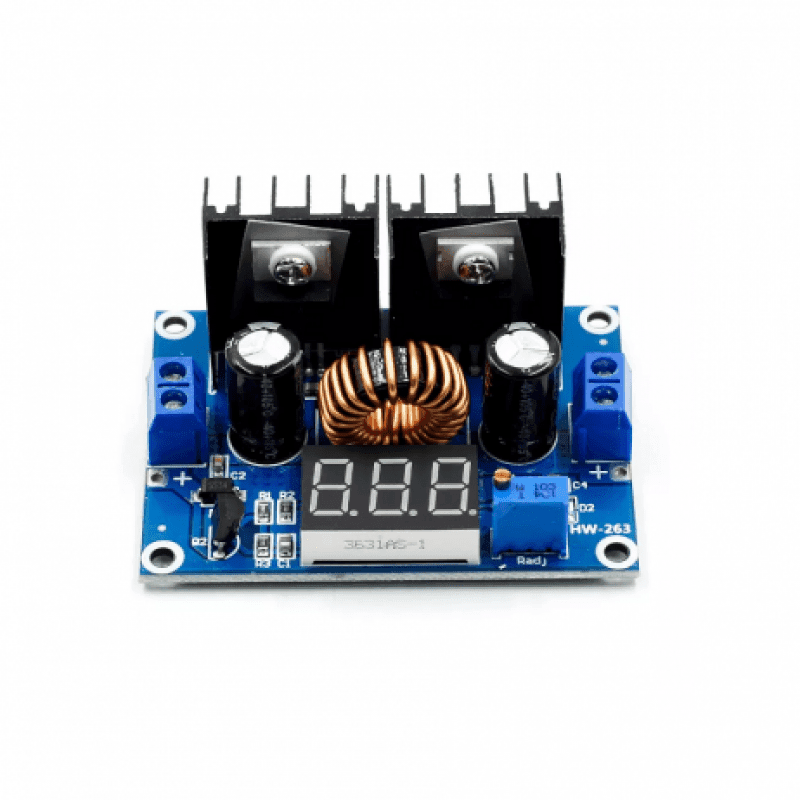

This XL4016E1 Step-Down Power Supply Module with voltage rating 4-40VDC to 1.25-36VDC. This module is rated for a maximum power of 200W. The output current for the module can be increased to 8A with the addition of an external fan onto the heatsinks to cool the IC.
Note: This Product is available in two different variants (XH-M404 and HW-263) with the same working, we will ship it randomly.
Features:-
- Adjustment method: first correct input power (between 4-40V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise),
- Input: IN+ input positive IN- input negative
- Output: OUT+ output positive OUT- output negative
- Static power consumption is only about 6mA.
- Connection: Welding, plus pin can be directly soldered after the PCB.
- Short circuit protection: current limiting, thermal protection, self-recovery.
- Non-isolated step-down (BUCK)switching regulator.
- Short circuit protection: Current limiting, self-recovery
- Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease)
- Non-synchronous rectification
Specifications:-
| Input Voltage (V) | 4 to 40VDC |
| Output Voltage (V) | 1.25 to 36VDC |
| Max Current (A) | 8 |
| Maximum Power (W) | 200 |
| Efficiency | 94% |
| Switching Frequency (KHz) | 180 |
| Length (mm) | 63 |
| Width (mm) | 46 |
| Height (mm) | 25 |
| Weight (gm) | 45 |
