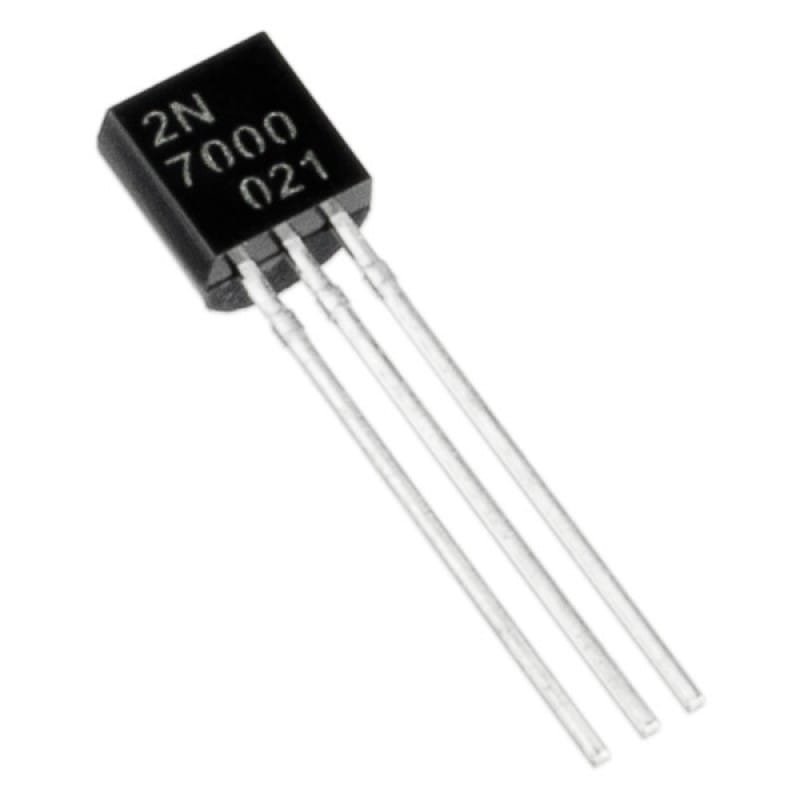

2N7000 MOSFET N Channel Enhancement Mode TO-92 Package

2N7000 MOSFET N Channel Enhancement Mode TO-92 Package

The 2N7000 is a N-Channel Enhancement Mode MOSFET designed for low-power switching and signal processing applications. It combines fast switching speed, low on-resistance, and high input impedance, making it ideal for use in digital logic circuits, load switching, and analog applications.

This MOSFET is housed in a compact TO-92 package, offering excellent performance in space-constrained designs. The 2N7000 can be driven directly from TTL and CMOS logic levels, providing reliable switching with minimal drive current.

Click here to view the related products

• Type: N-Channel Enhancement Mode MOSFET
• Drain-Source Voltage (Vds): 60V
• Continuous Drain Current (Id): 200mA
• Package Type: TO-92
• Features:
• Low gate threshold voltage
• High input impedance
• Fast switching response
• Low RDS(on) for efficient operation
• TTL and CMOS compatible

Applications

• Signal Switching: Ideal for digital and analog small-signal circuits
• Logic Level Switching: Compatible with microcontrollers and logic ICs
• Relay and LED Drivers: Used for switching small loads and indicators
• Power Management: Low-current power control in embedded systems
• DC-DC Converters: Useful in low-current converter circuits
• Educational and Hobby Projects: Popular in prototyping and circuit experiments

2n7000 mosfet datasheet

*Product image for illustration purposes only, actual product may vary.
