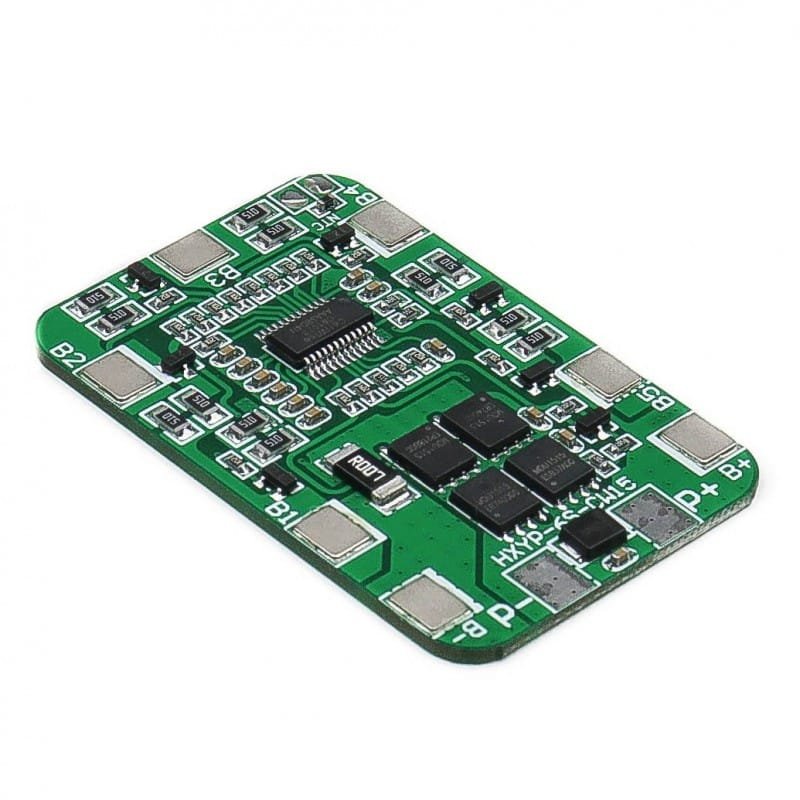

6S 20A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module

396.00 Excluding tax

Spread the components

6S 20 A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module is a small PCB mount Li-ion Lithium Battery charger protection module. This small battery charger protection module comes with various features like Short circuit protection, Overcharge protection, Over-discharge protection, Overcurrent protection. It is very easy to install and convenient to use in all your DIY portable projects.

Features:

  • Battery protection board is mainly for the rechargeable battery (generally refer to as lithium battery) to protect the role of the integrated circuit board.
  • Lithium battery (rechargeable) needs protection, which is determined by its own characteristics.
  • As the material of the lithium battery itself determines that it cannot overcharge, overflowing, short-circuiting, and super high temperature.
  • Charging and discharging of lithium battery will always follow a protective plate with a sampling resistance and a current safety device.
  • Instantaneous discharge current: 25A
  • Charging voltage: 25.5V
  • Charging current: 20 A (MAX)
  • Overcharge detection voltage: 4.28 0.05V
  • Overcharge protection delay: 0.1S
  • Over discharge detection voltage: 2.55 0.08V
  • Overcharge release voltage: 4.08 0.05V
  • Over discharge detection delay: 0.1S
  • The over discharge release voltage: 2.9 0.1V
  • Overcurrent detection voltage: 150mV
  • Overcurrent detection delay: 9MS
  • The Overcurrent protection current: 30 3A
  • Overcurrent protection release condition: Disconnect the load
  • Short circuit detection delay: 250uS
  • Short circuit protection Release condition: disconnect negative open
  • Main circuit conduction resistance: 20m
  • Working current: 30uA
  • Sleep current (battery over discharge) 10uA

Connections:

MB: The Common connection point between the batteries.

B+: Battery V+ Positive
B-: Battery V- Negative
P+: Charging V+
P-: Charging V-

Specifications:-

Input Voltage (V) 25.5 26 V
Operating Temperature (°C) -30 to 80
Weight (gm) 8
Over-Current Protection (A) Yes
Under-Voltage Protection (V) Yes
Internal Resistance(Ω) <20m
Maximum Operating Current (A) 15
Dimensions (mm) 50 x 32 x 4
