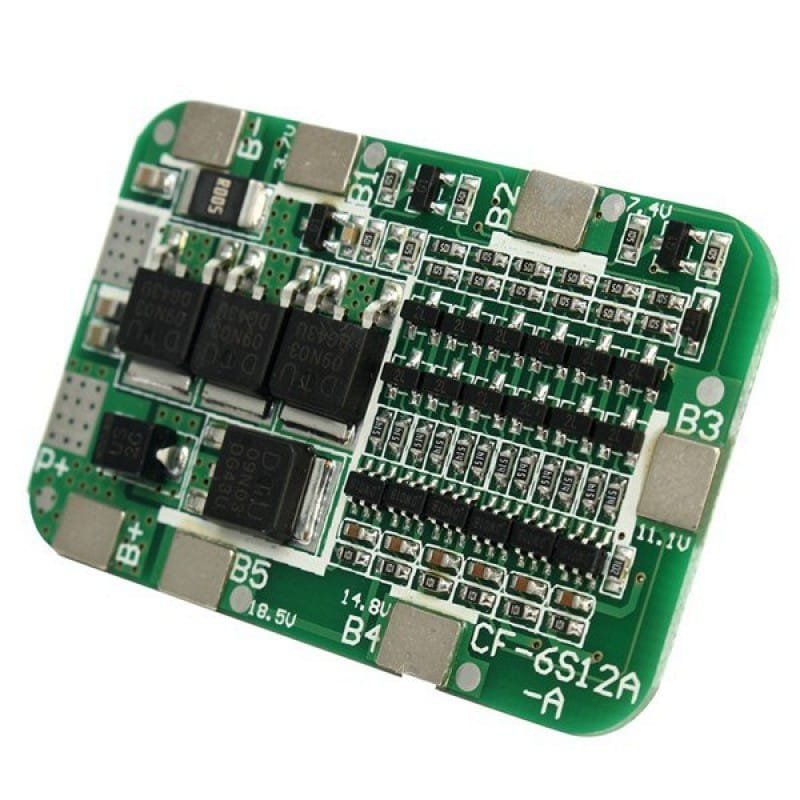

6S 25A 18650 Lithium Battery Protection Board

474.00 Excluding tax

Spread the components

Battery protection board, as the name suggests battery protection board is mainly rechargeable (Refers to the lithium battery) and protects the integrated circuit board. As the lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with sampling resistor, and a current fuse.

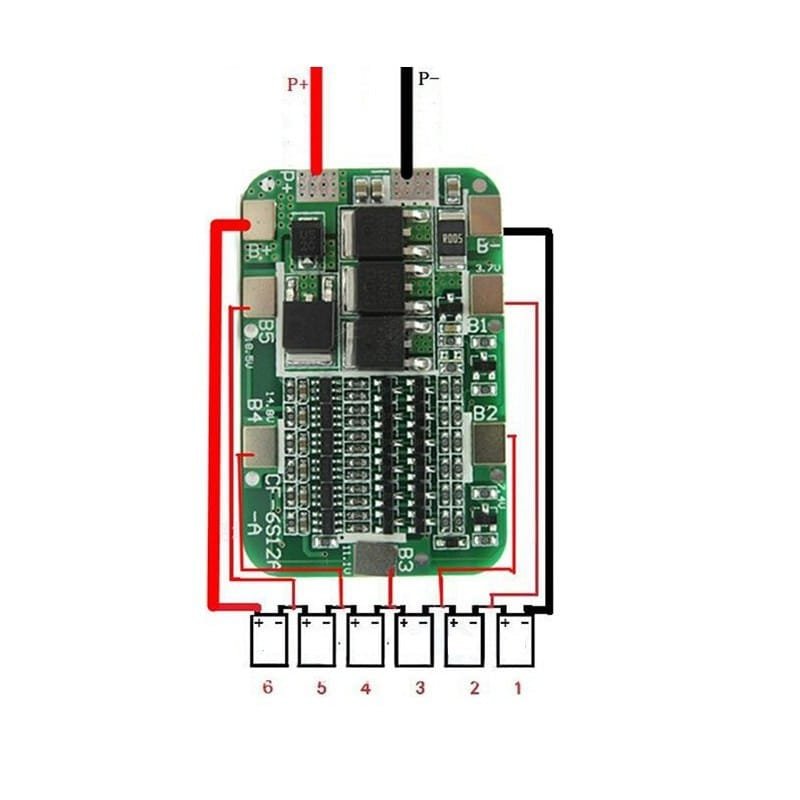

Providing all above features this 6S BMS board can combine 6 x 18650 battery to form a battery pack to provide up to 25V DC output at 25A current which can be used for heavy applications such as Drilling Machine, Car Washer etc.

Features:-

  • Overcharging and Over Discharging Protection
  • Short circuit protection: Yes
  • Applicable assembly: Nominal 3.7V Batteries / 6 strings.

Specifications:-

Maximum discharge current 15A
Instantaneous discharge current 25A
Charging voltage 25.5V
Charging current 15A (MAX)
Overcharge detection voltage 4.28±0.05V
Overcharge protection delay 0.1S
Overcharge release voltage 4.08±0.05V
Over discharge detection voltage 2.55±0.08V
Over discharge detection delay 0.1S
Over discharge release voltage 2.9±0.1V
Overcurrent detection voltage 150mV
Main circuit conduction resistance ≤20mΩ
Working current ≤30uA
Sleep current (battery over discharge) 10uA
Length (mm) 49
Width (mm) 32

* product image for illustration purposes only. actual product may vary.
