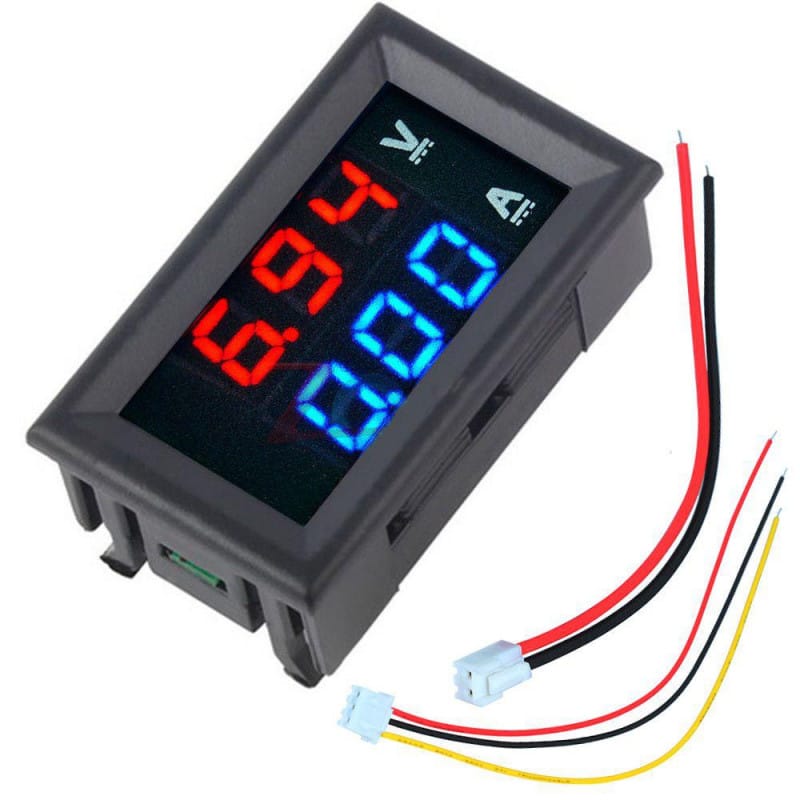

Digital Voltmeter (0-100V) and Ammeter (10 A) Dual Led Voltage Current Measurement Module

Digital Voltmeter (0-100V) and Ammeter (10 A) Dual Led Voltage Current Measurement Module.

Note:- Maximum Input Voltage should not exceed 30V otherwise there is a danger of burning.

Specifications:-

• Input Voltage – 4.5V to 30V DC
• Input Current – <= 20mA
• Display Color – Red (Voltage) , Blue (Current)
• Measuring Voltage Range – 0V to 100V DC
• Measuring Current Range – 0A to 10A
• Measurement Accuracy – 1%
• Minimum Voltage Resolution – 0.1V
• Minimum Current Resolution – 0.01A
• Size – 48x29x21mm

Wiring:-

Black line (thin): vacant or buck circuit (module) Negative
Red line (thin): power supply Positive
Black line (thick): COM, common measuring
Red line (thick): PW+, measuring terminal voltage input positive
Yellow line (thick): IN+, current input Positive

* product image for illustration purposes only. actual product may vary.
