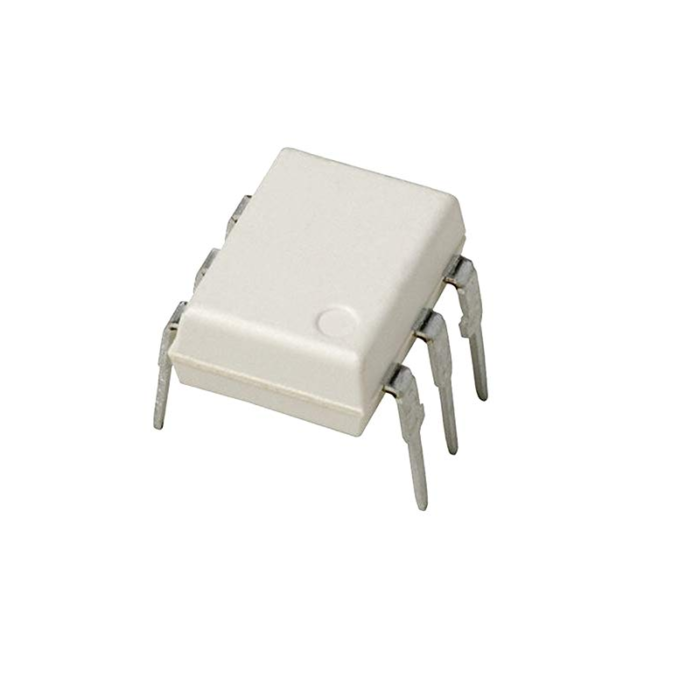

H11F1 Optocoupler IC DIP-6 Package

H11F1 Optocoupler IC DIP-6 Package.

The H11F1 is an opto-isolator with zero-crossing detection, designed to provide electrical isolation between low-voltage control circuits and high-voltage AC loads. It features an infrared LED input and a photo-sensitive triac output, enabling safe AC load switching while minimizing electrical noise.

Key Features:

• Zero-Crossing Detection – switches AC loads at the zero-voltage crossing point, reducing inrush current and EMI.
• High Isolation Voltage – typically 5000?Vrms between input and output.
• AC Load Switching – capable of directly driving triacs for AC loads.
• DIP-6 Package – convenient for through-hole PCB mounting.
• Industrial Noise Immunity – suitable for noisy or harsh environments.

Typical Applications:

• AC lamp dimmers and light control circuits.
• Motor control and speed regulators.
• Solid-state relays for household appliances and industrial equipment.
• Microcontroller or PLC-based AC load switching.
• Electrical isolation between low-voltage digital logic and high-voltage AC circuits.

Click here to view related products

H11F Datasheet

*product image for illustration purposes only. actual product may vary.
