HC 06 Wireless Bluetooth Module without Baseplate
The HC-06 module provides wireless serial communication (UART) between microcontrollers and Bluetooth-enabled devices. It acts as a bridge to replace traditional wired serial connections, eliminating bulky cables and improving system flexibility.

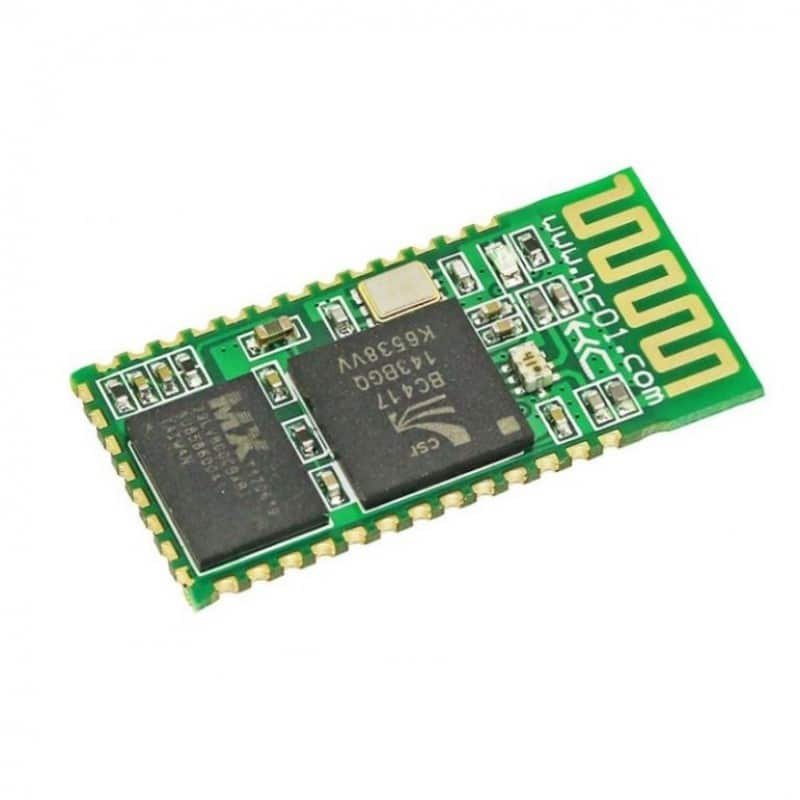

The onboard CSR BC417143 chipset ensures stable performance, fast pairing, and reliable data transmission over distances up to 10 meters in open space. The module’s built-in PCB antenna offers good signal strength and range while maintaining a slim, lightweight form factor.
Designed for plug-and-play use, the HC-06 works seamlessly with popular microcontroller platforms like Arduino, ESP8266, ESP32, STM32, AVR, and Raspberry Pi. It uses TTL-level serial communication, so you can directly connect the TX and RX pins to your MCU (with voltage level adjustment for 5V systems).
The AT command interface allows easy customization of key parameters such as device name, baud rate, and pairing password, giving developers full control over configuration and communication behavior.
Click here to view the related products
Features:-
- Works with any USB Bluetooth adapters.
- Default Baud Rate: 9600,8,1,n.
- Built-in antenna.
- Coverage up to 30ft.
specifications:-
| Model | HC-06 (without Baseplate) |
| Operating Voltage | 3.3V |
| Operating Current | 40mA |
| Bluetooth version | V2.0+EDR |
| Default Baud Rate | 9600,8,1,n. |
| Signal coverage | 30ft |
| Operating temperature range | -20C to +55C |
| Length (mm) | 27 |
| Width (mm) | 13.20 |
| Height (mm) | 2 |
Applications
- Wireless serial communication with Arduino or microcontrollers
- Bluetooth-enabled robots and automation systems
- Wireless sensor data transmission
- PC or smartphone to MCU serial interface
- IoT device communication
Advantages
- Compact module without baseplate — easy integration into embedded designs.
- Low power consumption and stable connectivity.
- Plug-and-play UART communication — no driver required on most devices.
- Supports Serial Port Profile (SPP) for seamless data transfer with Android/Windows devices.
*Product image for illustration purposes only, actual product may vary.
