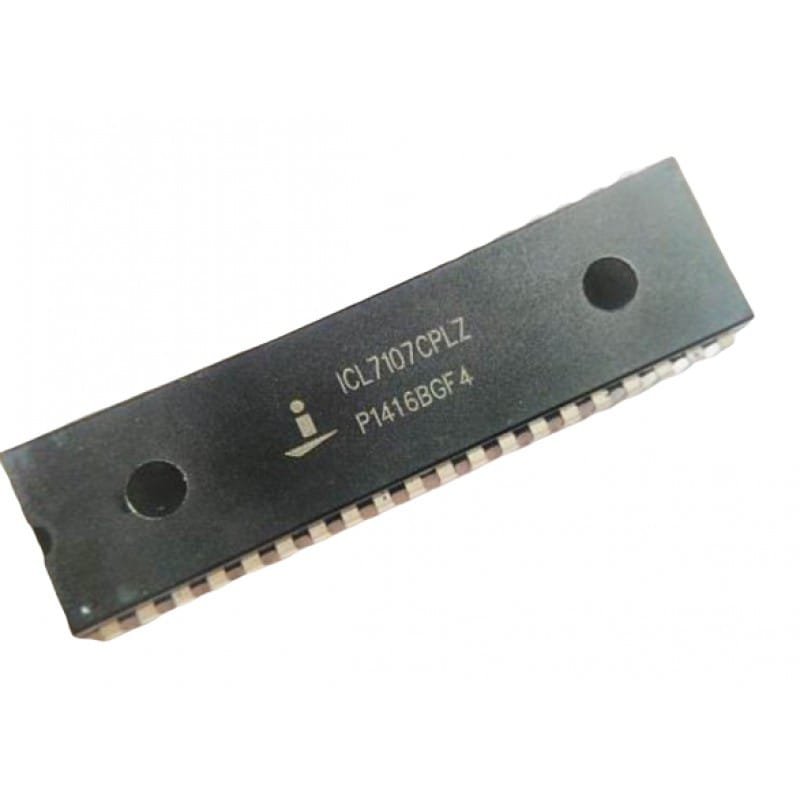

ICL7107 3 1/2 Digit LED Driver with A/D Converter IC DIP-40 Package

108.00 Excluding tax

Category: Tag:
Spread the components

The ICL7107 is a high performance, low power, 31/2 digit A/D converters. Included are seven segment decoders, display drivers, a reference, and a clock. The ICL7107 will directly drive an instrument size light emitting diode (LED) display. The ICL7107 bring together a combination of high accuracy, versatility, and true economy. It features auto zero to less than 10µV, zero drift of less than 1µV/°C, input bias current of 10pA (max) and rollover error of less than one count. True differential inputs and reference are useful in all systems, but give the designer an uncommon advantage when measuring load cells, strain gauges and other bridge type transducers.

Features:-

• Guaranteed zero reading for 0 V input on all scales

• True polarity at zero for precise null detection

• 1pA typical input current

• True differential input and reference, direct display drive – LED lCL7107

• Low noise – less than 15µVP-P

• On-chip clock and reference

• Low power dissipation – typically less than 10mW

• No additional active circuits required

• Enhanced display stability

• Pb-free (RoHS compliant)

Specifications:-

Parameters Specification
Supply Voltage ICL7107, V+ to GND 6V
ICL7107, V- to GND -9V
Analog Input Voltage  V+ to V-
Reference Input Voltage  V+ to V-
Clock Input GND to V+

icl7107-ic-datasheet

* product image for illustration purposes only. actual product may vary.
