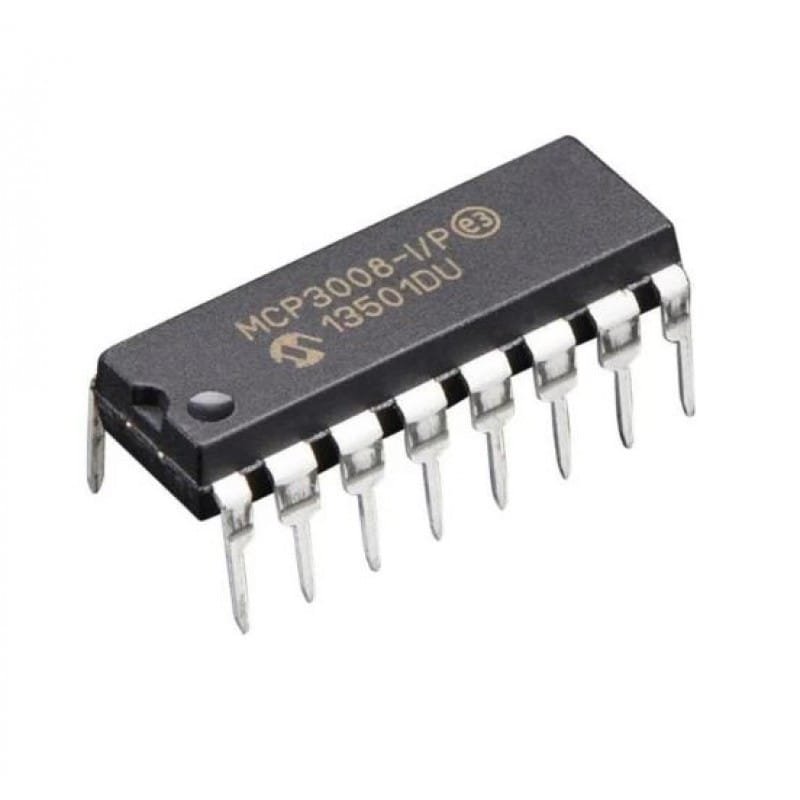

MCP3008 8-Channel 10-Bit A/D Converter with SPI Interface IC DIP-16 Package

The Microchip Technology Inc. MCP3008 devices are successive approximation 10-bit Analogto-Digital (A/D) converters with on-board sample and hold circuitry.  The MCP3008 is programmable to provide four pseudo-differential input pairs or eight single-ended inputs. Differential Non linearity (DNL) and Integral Non linearity (INL) are specified at ±1 LSB. Communication with the devices is accomplished using a simple serial interface compatible with the SPI protocol. The devices are capable of conversion rates of up to 200 ksps. The MCP3008 devices operate over a broad voltage range (2.7V – 5.5V). Low-current design permits operation with typical standby currents of only 5 nA and typical active currents of 320 µA. The MCP3008 is offered in 16- pin PDIP and SOIC packages.

Features:-

• 10-bit resolution

• ± 1 LSB max DNL

• ± 1 LSB max INL

• 8 (MCP3008) input channels

• Analog inputs programmable as single-ended or pseudo-differential pairs

• On-chip sample and hold

• SPI serial interface (modes 0,0 and 1,1)

• Single supply operation: 2.7V – 5.5V

• 200 ksps max. sampling rate at VDD = 5V

• 75 ksps max. sampling rate at VDD = 2.7V

• Low power CMOS technology • 5 nA typical standby current, 2 µA max.

• 500 µA max. active current at 5V

• Industrial temp range: -40°C to +85°C

• Available in PDIP, SOIC and TSSOP packages

Specifications:-

Parameters	Specification
VDD	7.0V
All Inputs and Outputs w.r.t. VSS	– 0.6V to VDD + 0.6V
Storage Temperature	–65°C to +150°C
Ambient temperature with power applied	–65°C to +150°C
Soldering temperature of leads (10 seconds)	+300°C
ESD Protection On All Pins (HBM)	≥ 4 kV
