ICL8038 12V to 15V Signal Generator 10Hz 450KHz Module

ICL8038 12V to 15V Signal Generator 10Hz 450KHz Module.

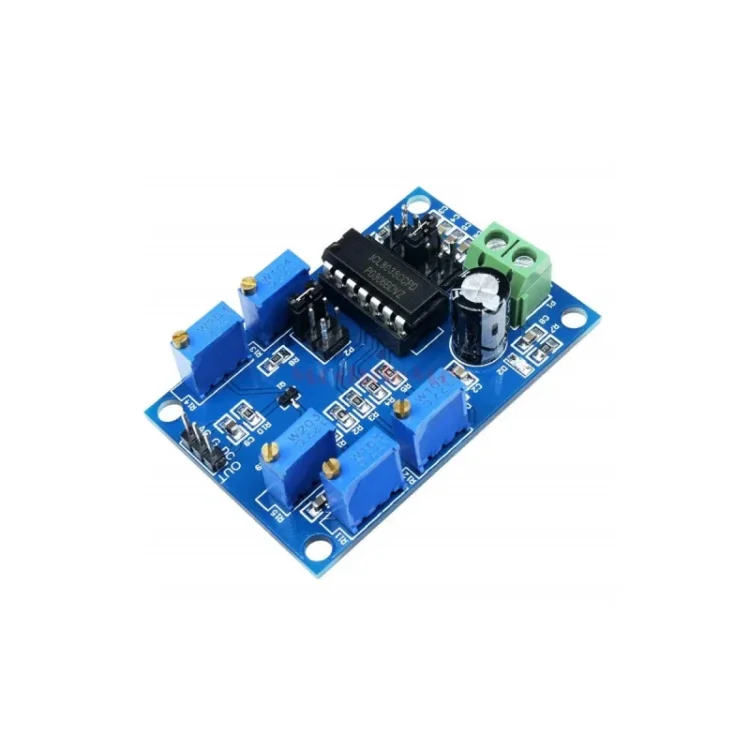

The ICL8038 Signal Generator Module is a function generator board capable of generating sine, square, and triangle waveforms over a wide frequency range of 10 Hz to 450 kHz.
It is based on the ICL8038 precision waveform generator IC, which offers low distortion, stable output, and adjustable frequency and amplitude.

The module includes onboard potentiometers to adjust frequency, duty cycle, and output amplitude, along with jumper/select pins to switch waveform types.
It is commonly used for testing audio circuits, analog filters, sensors, amplifiers, and educational experiments.

Operating voltage is typically 12V to 15V DC, suitable for lab bench use or electronics testing.

Click here to view the related products

Function:

• VCC, GND: working voltage
• AC: with DC bias output
• G: ground
• DC: pure signal output
• R11: Frequency adjustment
• R12: Square wave duty cycle adjustment
• R13: Sine wave linear adjustment
• R14: Amplitude adjustment
• R15: Square wave linear adjustment
• Jumper P2: select different wave-forms(triangular, square or sine waves)
• Jumper P3: select different frequency ranges
  10Hz-450Hz,90Hz-1.5KHz,940Hz-15KHz,6KHz-120KHz,20KHz-450KHz

Features:

• The LC ICL8038 module is designed for common frequency ranges.
• It is adjustable from 5 gears and generates low-distortion triangular waves, square and sine waves from 0Hz to 450KHz.
• Sine waves can be used for test signals, drive signals, carrier frequency signals, etc.
• A square wave can be used for switching signals, trigger signals, etc; the triangular wave is mainly used for scanning signals.
• Portable design, easy to operate.

Applications

• Function generator for electronics testing
• Audio equipment testing and analysis
• Analog circuit and filter testing
• Sensor signal simulation
• Educational labs and training kits
• Square wave source for digital/clock circuits
• Waveform generation for microcontroller experiments
• Frequency generator for debugging circuits
• Use in oscillators, waveform experiments, and RF prototypes
