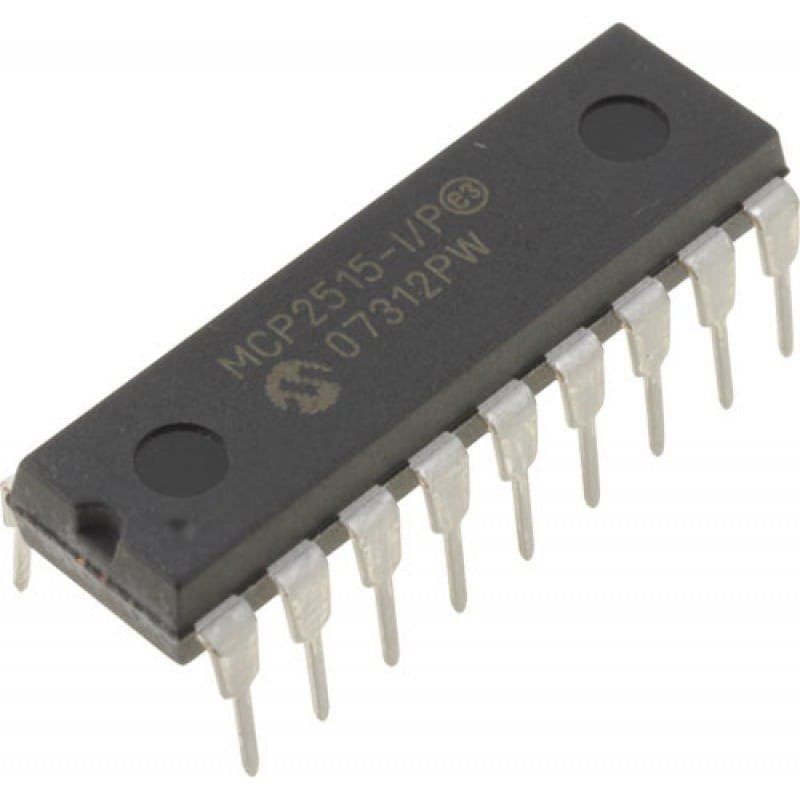

MCP2515 CAN Controller Interface IC DIP 18 Package

MCP2515 CAN Controller Interface IC DIP 18 Package

The MCP2515 is a stand-alone Controller Area Network (CAN) controller IC that enables CAN communication for microcontrollers that do not have an integrated CAN peripheral. It implements the CAN 2.0B protocol, supporting both standard (11-bit) and extended (29-bit) identifiers.

The MCP2515 communicates with the host microcontroller via a high-speed SPI interface and requires an external CAN transceiver (such as MCP2551) to connect to the physical CAN bus. Packaged in a DIP-18 through-hole package, it is ideal for prototyping, educational use, and industrial control applications.

Click here to view related products

Features

• Fully compliant with CAN 2.0B (active) specification
• Supports standard (11-bit) and extended (29-bit) CAN identifiers
• SPI interface up to high clock speeds
• Supports CAN data rates up to 1 Mbps
• Multiple transmit and receive buffers
• Programmable acceptance filters and masks
• Interrupt output for event-driven operation
• Low-power sleep mode
• Requires external CAN transceiver
• DIP-18 package for easy PCB mounting and prototyping

Applications

• CAN-enabled embedded systems
• Automotive electronics and diagnostics
• Industrial automation and control networks
• Robotics and motor control systems
• Building automation
• Data acquisition systems
• Educational and development platforms
