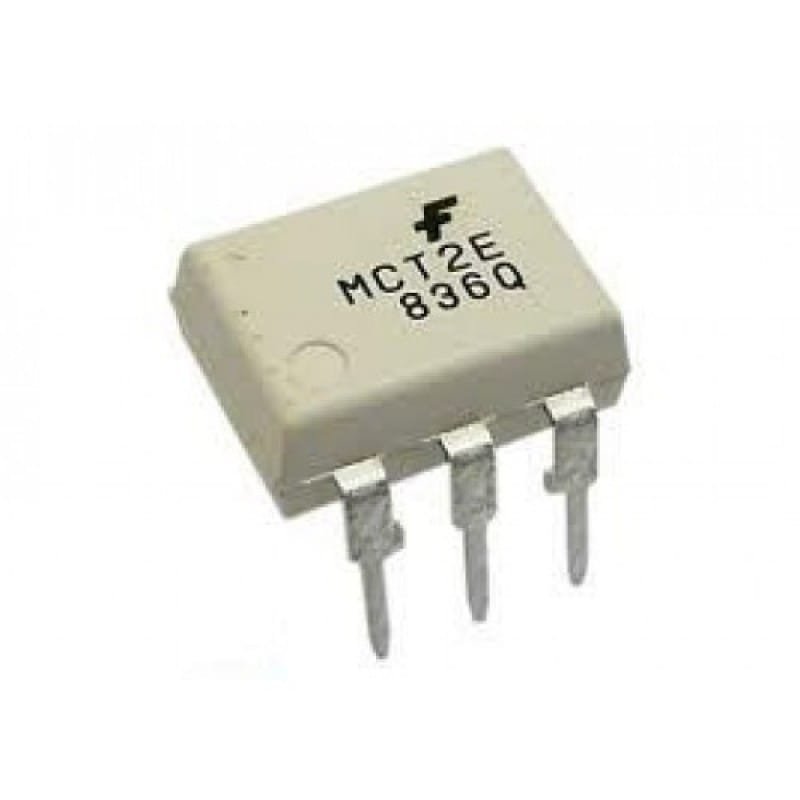

MCT2E Optocoupler Phototransistor IC DIP-6 Package

16.00 Excluding tax

Category: Tags: ,
Spread the components

The MCTE  is an Industry Standard Single Channel Photo transistor. Each optocoupler consists of gallium arsenide infrared LED and a silicon NPN photo transistor. These couplers are Underwriters Laboratories (UL) listed to comply with a 5300 VRMS isolation test voltage. This isolation performance is accomplished through double molding isolation manufacturing process. Compliance to DIN EN 60747-5-2(VDE0884)/ DIN EN 60747-5-5 pending partial discharge isolation specification is available for these families by ordering option 1. These isolation processes and the ISO 9001 quality program results in the highest isolation performance available for a commercial plastic photo transistor optocoupler. The devices are available in lead formed configuration suitable for surface mounting and are available either on tape and reel, or in standard tube shipping containers.

Features:-

• Interfaces with common logic families

• Input-output coupling capacitance < 0.5 pF

• Industry Standard Dual-in line 6-pin package

• 5300 VRMS isolation test voltage

Applications:-

• AC mains detection

• Reed relay driving

• Switch mode power supply feedback

• Telephone ring detection

• Logic ground isolation

• Logic coupling with high frequency noise rejection

Specification:-

Symbol Parameter Value Unit
IF Forward current 60 mA
PD Power dissipation 150 mW
VR Reverse Voltage 6 V
Tstg Storage temperature range – 55 to + 150 °C
TOPR Operating Temperature – 55 to + 150 °C
TSOL Lead Solder Temperature 260 for 10 sec °C
IFSM Surge current 2.5 A
VCEO Collector-emitter breakdown voltage 70 V
VEBO Emitter-base breakdown voltage 7 V
IC Collector current 100 mA

* product image for illustration purposes only. actual product may vary.
