Amplifier IC
NE5532 Dual Noise High-Speed Audio Operational Amplifier (Op-Aamp) IC DIP-8 Package
Availability:
In stock
₹34.80 (incl. tax)
In stock
The NE5532 devices are high-performance operational amplifiers combining excellent DC and AC characteristics. They feature very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation. These devices have specified maximum limits for equivalent input noise voltage.
Features:-
- Equivalent Input Noise Voltage:
- 5 nV/?Hz Typ at 1 kHz
- Unity-Gain Bandwidth: 10 MHz Typ
- Common-Mode Rejection Ratio: 100 dB Typ
- High DC Voltage Gain: 100 V/mV Typ
- Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 ?
- High Slew Rate: 9 V/?s Typ
Specification:-
| Parameter | Specification |
| Number of channels (#) | 2 |
| Total supply voltage (Max) (+5V=5, +/-5V=10) | 10 |
| Total supply voltage (Min) (+5V=5, +/-5V=10) | 30 |
| Rail-to-rail | No |
| GBW (Typ) (MHz) | 10 |
| Slew rate (Typ) (V/us) | 9 |
| Vos (offset voltage @ 25 C) (Max) (mV) | 4 |
| Iq per channel (Typ) (mA) | 4 |
| Vn at 1 kHz (Typ) (nV/rtHz) | 5 |
| Rating | See Data Sheet |
| Operating temperature range © | 0 to 70 |
| Input bias current (Max) (pA) | 200 |
| CMRR (Typ) (dB) | 100 |
| Output current (Typ) (mA) | 38 |

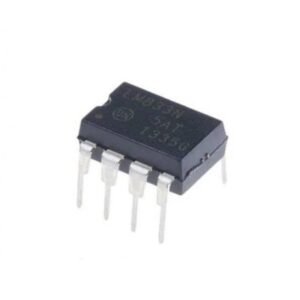

*product image for illustration purposes only. actual product may vary.
