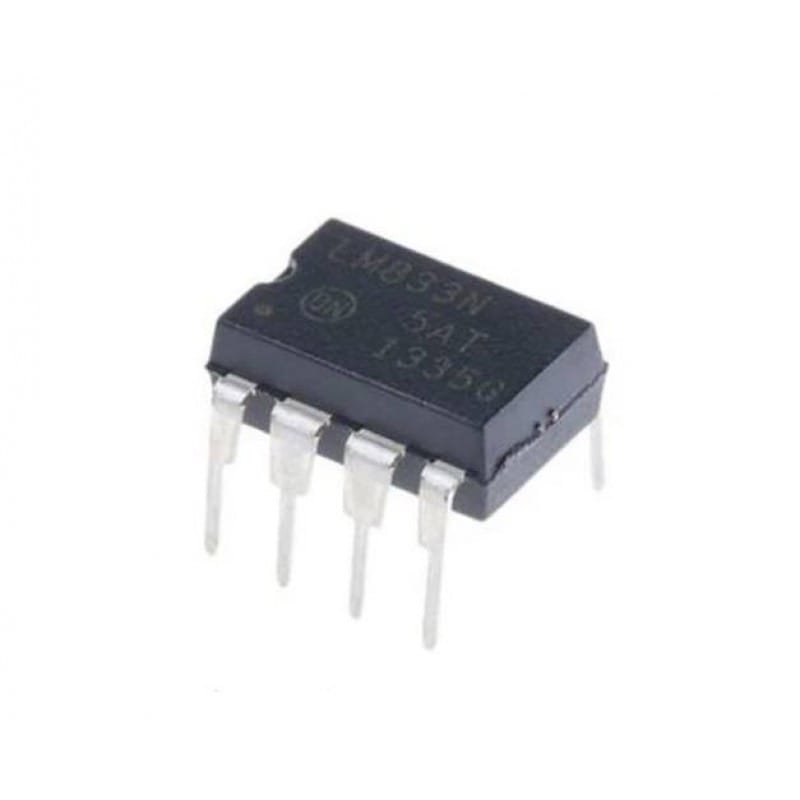

LM833 Dual Low Noise Audio Op-Amp IC DIP-8 Package

176.00 Excluding tax

Category: Tag:
Spread the components

The LM833 is a standard low−cost monolithic dual general−purpose operational amplifier employing Bipolar technology with innovative high−performance concepts for audio systems applications. With high frequency PNP transistors, the LM833 offers low voltage noise (4.5 nV/ Hz ), 15 MHz gain bandwidth product, 7.0 V/s slew rate, 0.3 mV input offset voltage with 2.0 V/°C temperature coefficient of input offset voltage. The LM833 output stage exhibits no dead−band crossover distortion, large output voltage swing, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source/sink AC frequency response.

Features:-

• Low Voltage Noise: 4.5 nV/ Hz

• High Gain Bandwidth Product: 15 MHz

• High Slew Rate: 7.0 V/s

• Low Input Offset Voltage: 0.3 mV

• Low T.C. of Input Offset Voltage: 2.0 V/°C

• Low Distortion: 0.002%

• Excellent Frequency Stability

• Dual Supply Operation

• NCV Prefix for Automotive and Other Applications Requiring Site and Change Controls

• These Devices are Pb−Free and are RoHS Compliant

Specification:-

Parameter Symbol Value Unit
Supply Voltage (VCC to VEE) VS 36 V
Input Differential Voltage Range VIDR 30 V
Input Voltage Range VIR ±15 V
Output Short Circuit Duration Tsc Indefinite
Operating Ambient Temperature Range TA −40 to +85 °C
Operating Junction Temperature TJ 150 °C
Storage Temperature Tstg −60 to +150 °C
ESD Protection at any Pin
− Human Body Model
− Machine Model
Vesd 600 V
200
Maximum Power Dissipation PD 500 m W

lm833-ic-datasheet

* product image for illustration purposes only. actual product may vary.
