STONE PRO TM-619H-2 Digital Programmable Electronic Timer Switch

STONE PRO TM-619H-2 Digital Programmable Electronic Timer Switch

The STONE PRO TM-619H-2 is a digital programmable electronic timer switch designed to automatically control electrical loads on a pre-set schedule. It supports multiple ON/OFF programs per day or week, allowing precise automation for lighting, appliances, pumps, and industrial equipment.
It features a built-in rechargeable battery to retain settings during power outages and provides relay-based output control suitable for AC and DC loads. Its compact design and DIN-rail/wall mounting compatibility make it ideal for both home and industrial automation applications.

Click here to view the related products

Specifications :-

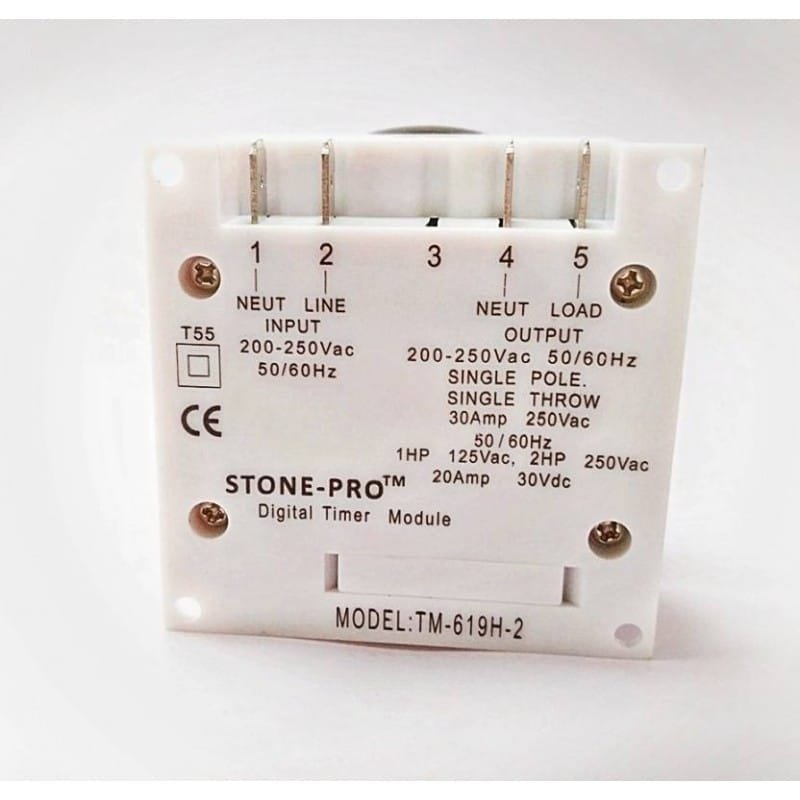

• Input voltage: 200 to 250 VAC Frequency 50/60Hz
• Contact: Single Pole – Single Throw 16 Ampere, 250 V AC or 20 A, 30V DC
• Running Accuracy: ± 1 second / day at 20°C
• Minimum Time Setting: 1 minute
• Memory Back up: Lithium battery inside the timer CR2032
• Backing Type: Replaceable battery
• Brand Name: STONE-PRO
• Colour: White and Grey
• Item Weight: 80.0  grams
• Model Number:  Digital programmable Electronic Timer
• Part Number: TM-619H-2

Feature :-

• 17 ON / OFF programs can be set per day
• Option to select Day/Days of the week on which the programmed functions to be performed
• LED power indicator
• Manual over ride switch
• LCD on screen displays ON and OFF switching status
• With Lithium battery inside for memory back up; CR2032 User Replaceable
• With daily weekly and impulse programs
• Easy Connection Settings

Applications

• Home lighting automation
• Automatic control of fans and household appliances
• Street lights and outdoor lighting control
• Industrial machine and motor scheduling
• Water pump and borewell automation
• Irrigation and greenhouse lighting systems
• Shop signboard and advertising light control
• Security lighting and alarm scheduling
• Aquarium lights, filters, and feeders automation
• Timed operation of HVAC and exhaust fans
• Energy-saving scheduled power cycling for devices
• Commercial display boards and LED panels control
